Eclatés de véhicule - APRILIA SCARABEO 500 Light 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

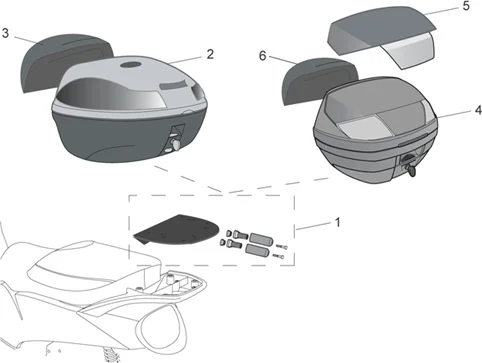

Accessoires : 30.51 ACC. - TOP CASES I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/609/Scarabeo_500_Light_2006-2008_30.51.PNG)
1 |
PLATINE TOP CASE ORIGINE PIAGGIO APRILIA 125-250-300-400-500 SCARABEO 2003> -AP851984- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/0/0/9/img/108009.jpg)
2 |
TOP-CASE 47 L ORIGINE PIAGGIO APRILIA ATLANTIC, SCARABEO NOIR -CM220301- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/0/1/0/img/108010.jpg)
2 |
TOP CASE 47L ORIGINE PIAGGIO APRILIA ATLANTIC, SCARABEO GRIS SHOT -CM220302 Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
CM220303 - COFFRE STREET C II 47 NOIR COFFEE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
CM220304 - COFFRE STREET C II 47 BEIGE P.S. Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
CM220307 - COFFRE STREET C II 47 BLEU COUTURE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
CM220309 - BAULE NERO GOFFRATO Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
CM220310 - BAULE ROSSO SHINE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
CM220311 - BAULE BIANCO GLAM Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/6/5/1/2/img/106512.jpg)
3 |
DOSSERET DE TOP CASE ORIGINE PIAGGIO APRILIA ATLANTIC, SCARABEO -852313 Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
TOP CASE NOIR ORIGINE PIAGGIO APRILIA 125 SCARABEO 2010>2012, 300 ATLANTIC 2010>2012, 850 MANA 2007>2016 -CM220401- Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
CM220801 - PROTECTION Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
CM220802 - COVER TOP BOX BLACK COFFEE Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
CM220803 - PROTECTION Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
COUVERCLE DE TOP CASE BLUE COUTURE ORIGINE PIAGGIO APRILIA 125 SCARABEO 2009>2012 -CM220814- Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
CM220815 - COVER TOP BOX RED SHINE Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
CM220816 - COVER TOP BOX GREY LEAD Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
CM220817 - PROTECTION Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
DOSSERET TOP CASE ORIGINE PIAGGIO APRILIA SCARABEO, ATLANTIC, SPORT-CITY -852312- Plus d'informationsQuantité requise : 1 |
