Eclatés de véhicule - APRILIA SCARABEO DITECH 50 2001-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

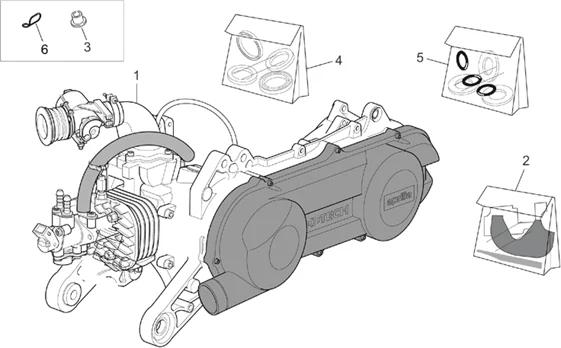

Moteur : 29.21 MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/586/Scarabeo_50_Ditech_2001-2004_29.21.PNG)
1 |
|
||||||
|
1 |
|
||||||
|
2 |
AP5RZR000220 - KIT PANNEAU INSONORISANT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/5/img/71485.jpg)
3 |
DOUILLE EN T INTERIEUR 5 MM ORIGINE PIAGGIO COMMUN A LA GAMME -AP8121795 Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
AP5RZR000218 - KIT MOTEUR SPI Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
AP5RZR000219 - JEU DE JOINTS Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
AP8121856 - GUIDE-CABLE Plus d'informationsQuantité requise : 1 |
