Eclatés de véhicule - APRILIA SCARABEO 4T 50 4V E2 2010-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

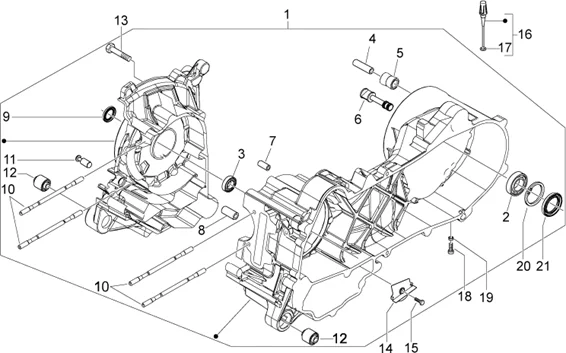

Moteur : 29.28 CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/589/Scarabeo_50_4T_4V_E2_2010-2012_29.28.PNG)
1 |
8733356 - CARTER MOTEUR Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/5/9/img/66459.jpg)
2 |
ROULEMENT (20X47X14)AXE DE POULIE RECEPTRICE ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 CC -434735- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/1/2/img/68612.jpg)
3 |
ROULEMENT (20X60X13) EMBIELLAGE ORIGINE MOTEUR PIAGGIO 50 4T (COTE GAUCHE) -82671R- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/4/img/66054.jpg)
4 |
ENTRETOISE DE SILENTBLOC D'AMORTISSEUR ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 CC -266625- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/6/img/66066.jpg)
5 |
SILENTBLOC AMORTISSEUR ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 CC -267823- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/0/img/66120.JPG)
6 |
PIVOT ORIGINE PIAGGIO COMMUN A LA GAMME -272921- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
7 |
DOUILLE DE CENTRAGE (9,5X15) CARTER ORIGINE PIAGGIO COMMUN ALA GAMME -B015956- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/1/7/img/66417.jpg)
8 |
BAGUE/DOUILLE BRONZE 8X12X8 ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER ET MAXISCOOTER -431860- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/2/8/img/70928.jpg)
9 |
JOINT SPI (17X28X7) DE VILEBREQUIN ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 CC 4T -969028- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/1/5/img/69215.jpg)
10 |
GOUJON DE CYLINDRE ORIGINE PIAGGIO 50 4T COMMUN A LA GAMME -842161- Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/4/3/img/66643.jpg)
11 |
PIVOT RESSORT DE BEQUILLE ORIGINE PIAGGIO COMMUN A LA GAMME -483785- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/0/4/img/66704.jpg)
12 |
SILENTBLOC DE CARTER MOTEUR ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER ET MAXISCOOTER -486081- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/6/9/img/66569.JPG)
13 |
VIS BRIDE TH (6X55) ORIGINE PIAGGIO COMMUN A LA GAMME -478895- Plus d'informationsQuantité requise : 10 |
||||||
|
14 |
969625 - PROTECTION OIL Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/5/img/66655.jpg)
15 |
VIS BRIDE TH (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -484123- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/9/1/img/68991.jpg)
16 |
JAUGE NIVEAU HUILE TRANSMISSION ORIGINE PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA ATLANTIC, SR MAX/GILERA NEXUS, RUNNER -832130- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/4/3/img/68643.jpg)
17 |
JOINT/BAGUE ETANCHEITE (14,43X9,19X2,62) ORIGINE PIAGGIO COMMUN A LA GAMME -827085- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/5/img/66085.jpg)
18 |
VIS BTR (8X12) ORIGINE PIAGGIO COMMUN A LA GAMME -269755- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/9/img/66689.jpg)
19 |
JOINT DE VIDANGE CARTER DE TRANSMISSION (8,2X12X1) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -485703- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/5/img/63825.jpg)
20 |
CLIPS/CIRCLIPS (47X50.5X1.75) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -006647- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/5/8/img/66558.jpg)
21 |
JOINT SPI (30X47X6) AXE DE ROUE ORIGINE PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD, SPORT-CITY -478498- Plus d'informationsQuantité requise : 1 |
