Eclatés de véhicule - APRILIA SCARABEO 2T 50 Mot Minarelli 1993-1997
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

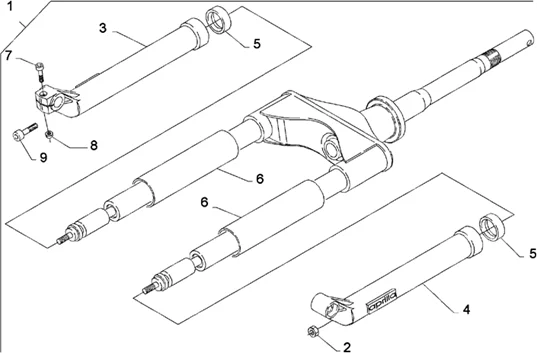

Chassis : 28.30 FOURCHE COMPLÈTE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/603/Scarabeo_50_2T_Mot_Minarelli_1993-1997_28.30.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/8/5/3/img/39853.jpg)
1 |
854575 - FOURCHE COMPLETE Plus d'informationsQuantité requise : 0 |
||||||
2 |
AP8203711 - BASE AVEC TUBE Plus d'informationsQuantité requise : 0 |
||||||
|
2 |
AP8203689 - ECROU BORGNE Plus d'informationsQuantité requise : 0 |
||||||
|
3 |
AP8203636 - FOURREAU D Plus d'informationsQuantité requise : 0 |
||||||
|
4 |
AP8203637 - FOURREAU G Plus d'informationsQuantité requise : 0 |
||||||
|
5 |
Bague d'étanchéité; |
||||||
|
6 |
AP8203938 - FOURREAU TUBE Plus d'informationsQuantité requise : 0 |
||||||
|
7 |
Vis |
||||||
|
8 |
Ecrou |
||||||
|
9 |
AP8203717 - VIS BRIDE Plus d'informationsQuantité requise : 0 |
||||||
|
10 |
AP8203689 - ECROU BORGNE Plus d'informationsQuantité requise : 0 |
||||||
|
11 |
Rondelle |
||||||
|
12 |
Rondelle de butée |
||||||
|
13 |
Bague de butée |
||||||
|
14 |
AP8203710 - ECROU BRIDE Plus d'informationsQuantité requise : 0 |
||||||
|
15 |
Caoutchouc pare-chocs |
||||||
|
16 |
AP8203716 - ELEM.POMPAGE CPL Plus d'informationsQuantité requise : 0 |
