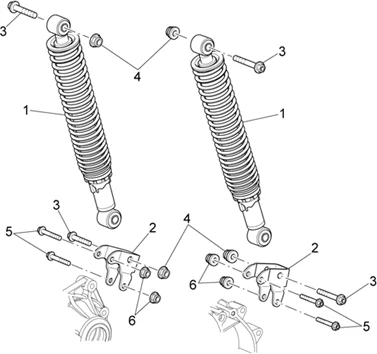

Chassis : 28.07 SUSPENSION ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/605/Scarabeo_400_Light_2006-2008_28.07.PNG)
1 |
AP8163503 - AMMORTIZZATORE Plus d'informationsQuantité requise : 2 |
||||||
|
2 |
598232 - ETRIER Plus d'informationsQuantité requise : 2 |
||||||
|
3 |
VIS BRIDE TH (10X55) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152410 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
4 |
ECROU BRIDE AUTOBLOQUANT/NYLSTOP (M10) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152301 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/4/img/71954.jpg)
5 |
VIS BRIDE TH (M8X50) ORIGINE PIAGGIO COMMUN A LA GAMME - AP8152292 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
6 |
ECROU BRIDE AUTOBLOQUANT/NYLSTOP (M8) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152300 Plus d'informationsQuantité requise : 4 |
