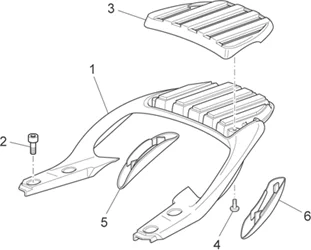

Chassis : 28.17 CARROSSERIE POSTERIEURE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/607/Scarabeo_125_Light_Carb_2007-2010_28.17.PNG)
1 |
672917 - POIGNEE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
JC46212X92000 - VIS Plus d'informationsQuantité requise : 4 |
||||||
|
3 |
JC46251X92000 - COUV. PORTE-BAG., Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
4 |
VIS CRUCIFORME (3.9X14) TARAUD CARENAGE INOX ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME MOTO -AP8150413 Plus d'informationsQuantité requise : 4 |
||||||
|
5 |
JC46241X92000 - POIGNEE DROITE Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
JC46242X92000 - POIGNEE GAUCHE Plus d'informationsQuantité requise : 1 |
