Eclatés de véhicule - APRILIA SCARABEO 125 E3 Mot Piaggio 2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

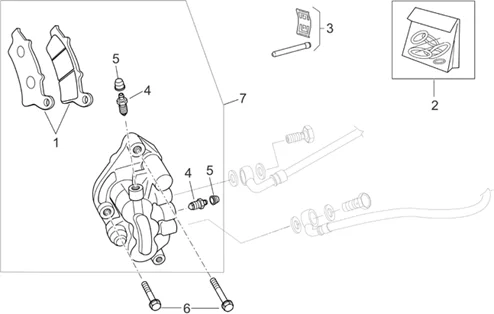

Chassis : 28.38 PINCE AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/612/Scarabeo_125_E3_Mot_Piaggio_2006_28.38.PNG)
1 |
AP8133761 - PASTIGLIE -COPPIA- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/7/6/img/71676.jpg)
1 |
PLAQUETTES DE FREIN AVANT ORIGINE PIAGGIO POUE APRILIA 125-250 ATLANTIC 2003>2006, 400-500 ATLANTIS-SPRINT 2005>2008, 125-250-300 SCARABEO LIGHT (PAIRE) -AP8133815 Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8133604 - KIT REVISION PINCE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/7/9/0/img/48790.jpg)
3 |
KIT PIVOT/RESSORT ETRIER DE FREIN AVANT GRIMECA ORIGINE PIAGGIO APRILIA 125-250 ATLANTIC, SCARABEO 2008< -AP8133760 Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP8133818 - PERNI CON MOLLE PINZA Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
AP8133814 - SPURGO ARIA Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/9/9/img/72199.jpg)
4 |
VIS DE PURGE ETRIER DE FREIN ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER ET MAXISCOOTER APRILIA -AP8213108- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/4/img/71284.jpg)
5 |
CAPUCHON RENIFLARD ETRIER DE FREIN OROGINE PIAGGIO COMMUN A LA GAMME 2008< -AP8113005 Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
AP8133813 - CAPPUCCIO SPURGO ARIA Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/3/img/71823.jpg)
6 |
VIS BTR (8X30) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150107 Plus d'informationsQuantité requise : 2 |
||||||
|
7 |
AP8133717 - PINZA FRENO ANTERIORE Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
AP8133851 - PINZA FRENO ANT.3 PISTONI Plus d'informationsQuantité requise : 1 |
