Eclatés de véhicule - APRILIA SCARABEO 4T 100 E3 2010-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

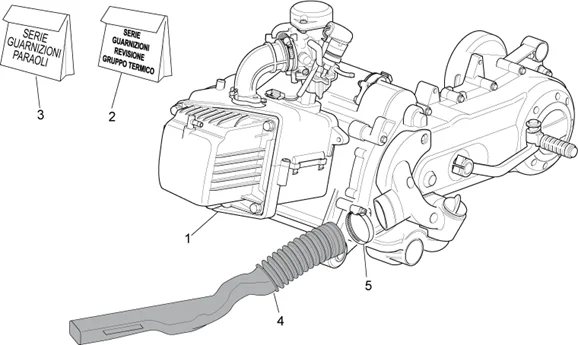

Moteur : 29.21 MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/617/Scarabeo_100_4T_E3_2010-2012_29.21.PNG)
Rechercher
1 |
5048265 - MOTEUR 100 4T E3 APRILIA SCAR.X RIC. Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
497148 - SERIE JOINTS Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
497149 - SERIE JOINTS Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
AP8220582 - MANCHON VARIATEUR Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
AP8220104 - COLLIER Plus d'informationsQuantité requise : 1 |
