Eclatés de véhicule - GILERA RUNNER 50 Purejet 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

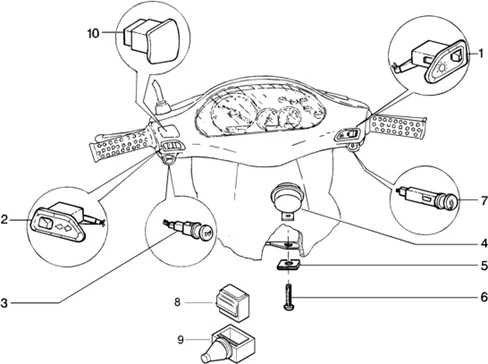

Connexions électriques : T48 DISPOSITIFS ELECTRIQUES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/656/Runner_50_Purejet_1998-2005_T48.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/8/7/img/67987.jpg)
1 |
COMMUTATEUR CODE/PHARE ORIGINE PIAGGIO 50 FLY, LIBERTY, NRG, TYPHOON, ZIP/GILERA 50 STALKER, RUNNER -642968- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/2/1/5/img/198215.JPG)
1 |
CONTACTEUR A CLE ORIGINE PIAGGIO 50 ZIP 1998>, NRG POWER 2005>, LIBERTY 1998>50-125 FLY 2005>, VESPA LX 2005>, /GILERA 50 RUNNER 2000>/APRILIA 50 SR MOTARD 2012> (COTE FAISCEAU) -1D002436- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/3/img/67203.jpg)
1 |
RELAIS DEMARREUR MAXISCOOTER ORIGINE PIAGGIO 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250-300 ATLANTIC (12V-80A) -58115R- Plus d'informationsQuantité requise : 1 |
|||||||||
1 |
584605 - FAISCEAU CABLES Plus d'informationsQuantité requise : 1 |
|||||||||
|
1 |
CONTACTEUR A CLE ORIGINE PIAGGIO 50 ZIP 1998>, NRG POWER 2005>, LIBERTY 1998>50-125 FLY 2005>, VESPA LX 2005>, /GILERA 50 RUNNER 2000>/APRILIA 50 SR MOTARD 2012> (COTE FAISCEAU) -1D002436- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/4/img/66004.jpg)
2 |
FUSIBLE PLAT ENFICHABLE STANDARD 7,5A ORIGINE PIAGGIO COMMUN A LA GAMME -252945- Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/4/img/66244.jpg)
2 |
FUSIBLE PLAT ENFICHABLE STANDARD 15A ORIGINE PIAGGIO COMMUN A LA GAMME -290860- Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/8/4/img/67984.jpg)
2 |
COMMUTATEUR CLIGNOTANT SCOOT ORIGINE PIAGGIO 50 ZIP, TYPHOON, FLY, LYBERTY, 125-250-400 MP3, BEVERLY, X-EVO, X8/GILERA 50 STALKER, RUNNER/APRILIA 50 SR -6426795 - Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/8/img/66008.jpg)
2 |
RESSORT D'ARRET DE CONTACTEUR A CLE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -253937- Plus d'informationsQuantité requise : 1 |
|||||||||
|
3 |
830094 - BOBINE H.T. Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/1/img/67181.jpg)
3 |
PORTE-FUSIBLES ORIGINE PIAGGIO COMMUN A LA GAMME -580653- Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/7/7/img/67177.jpg)
3 |
BOUTON/COMMUTATEUR AVERTISSEUR ORIGINE PIAGGIO 50 TYPHOON, NRG, FFY, ZIP, 125-250-500 X-EVO, X8, X9, BEVERLY/GILERA 50 STALKER, RUNNER/APRILIA 125-250-400-500 SCARABEO-LIGHT GAUCHE -58058R- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/4/0/7/2/img/154072.jpg)
3 |
BLOC SERRURE SCOOT ORIGINE PIAGGIO 50-125 FLY, LIBERTY, ZIP, VESPA LX, 125-250-400 X8, X-EVO, 125-250-300 VESPA GTS/GILERA 50 RUNNER/APRILIA 50-125 SR, SPORT-CITY -1B006291- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/8/7/7/img/73877.jpg)
4 |
ECROU M4 ORIGINE PIAGGIO COMMUN A LA GAMME -020004- Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/4/img/66304.jpg)
4 |
CORPS DE SERRURE ORIGINE PIAGGIO 50 ZIP, NRG, TYPHOON, 50-125 VESPA LX, LIBERTY, FLY, 125-250-400 X-EVO, X8, BEVERLY, 125-250-300 CARNABY, X7, VESPA GTS, X10, 125-250-500 X9 -1B002607- Plus d'informationsQuantité requise : 1 |
|||||||||
|
4 |
AVERTISSEUR ORIGINE PIAGGIO 50 TYPHOON, FLY, NRG, 125-250-300 VESPA GTS -58093R- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/5/9/img/70959.jpg)
4 |
VIS BRIDE TH (6X10) ORIGINE PIAGGIO COMMUN A LA GAMME -969296- Plus d'informationsQuantité requise : 2 |
|||||||||
|
5 |
583816 - EQUERRE Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
5 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485- Plus d'informationsQuantité requise : 1 |
|||||||||
|
5 |
RONDELLE EVENTAIL (4.2X8X1.1) ORIGINE PIAGGIO COMMUN A LA GAMME -012531- Plus d'informationsQuantité requise : 2 |
|||||||||
|
5 |
576719 - CLE EBAUCHE RUNNER 50/125/180/200 Plus d'informationsQuantité requise : 1 |
|||||||||
|
5 |
RONDELLE EVENTAIL (4.2X8X1.1) ORIGINE PIAGGIO COMMUN A LA GAMME -012531- Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
6 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -B016777- Plus d'informationsQuantité requise : 1 |
|||||||||
|
6 |
VIS BRIDE TH (6X10) ORIGINE PIAGGIO COMMUN A LA GAMME -969296- Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/8/4/img/65984.JPG)
6 |
ECROU BRIDE (5) ORIGINE PIAGGIO COMMUNU A LA GAMME -241937- Plus d'informationsQuantité requise : 2 |
|||||||||
|
6 |
434541 - VIS Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/9/4/3/img/80943.JPG)
6 |
CONTACTEUR A CLE/SERRURE RUNNER 50/125/180/200 2005< -576718- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/9/img/66309.jpg)
7 |
RESSORT D'ARRET SERRRURE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -298838- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/7/6/img/67176.jpg)
7 |
BOUTON DEMARRAGE ORIGINE PIAGGIO 50 TYPHOON, NRG, FLY, ZIP, 125 FLY, LIBERTY, 125-250-400 X8, X9, X-EVO, BEVERLY/GILERA 50 STALKER/APRILIA 125-300-500 SCARABEO -58057R- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/5/4/img/65854.jpg)
8 |
ANTIPARASITE ORIGINE PIAGGIO 350 BEVERLY, X10 2012> -1D000275 - Plus d'informationsQuantité requise : 1 |
|||||||||
|
8 |
BLOC SERRURE SCOOT ORIGINE PIAGGIO 50-125 FLY, LIBERTY, ZIP, VESPA LX, 125-250-400 X8, X-EVO, 125-250-300 VESPA GTS/GILERA 50 RUNNER/APRILIA 50-125 SR, SPORT-CITY -1B006291- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/8/3/9/img/118839.jpg)
8 |
CENTRALE CLIGNOTANTE ORIGINE PIAGGIO 125 TYPHOON, HEXAGON, SKIPPER, 50 VESPA ET2/GILERA 50-125 RUNNER -1E000357R- Plus d'informationsQuantité requise : 1 |
|||||||||
|
8 |
ANTIPARASITE ORIGINE PIAGGIO 350 BEVERLY, X10 2012> -1D000275 - Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/7/img/67187.jpg)
9 |
REGULATEUR MAXISCOOTER ORIGINE PIAGGIO 125 BEVERLY, FLY, LIBERTY, MP3, X7, X8, X9, X-EVO, VESPA GTS, PRIMAVERA, VESPA SPRINT, VESPA LX/APRILIA 125 ATLANTIC, MOJITO, RS4/GILERA 125 NEXUS -58090R5- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/6/img/66246.JPG)
9 |
SUPPORT ELASTIQUE CENTRALE ORIGINE PIAGGIO COMMUN A LA GAMME -291017- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/5/img/66305.jpg)
9 |
RONDELLE DE BLOC DIRECTION ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -298594- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/8/img/65668.jpg)
10 |
CABLE HAUTE TENSION ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -080341- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/3/6/img/71636.jpg)
10 |
BOUCHON/OBTURATEUR DE TABLEAU DE BORD ORIGINE PIAGGIO COMMUN A LA GAMME -AP8127896- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/8/img/66308.jpg)
10 |
JOINT DE SERRURE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -298731- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
11 |
COLLIER DE SERRAGE NYLON TYPE RILSAN 180 MM ORIGINE PIAGGIO COMMUN A LA GAMME -145298- Plus d'informationsQuantité requise : 1 |
|||||||||
|
12 |
640705 - DISPOSITIF ELECTR.IMM. Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/3/2/img/65932.jpg)
13 |
CAOUTCHOUC/SILENBLOC (8MM) ORIGINE PIAGGIO COMMUN A LA GAMME -217163- Plus d'informationsQuantité requise : 3 |
|||||||||
|
14 |
217164 - ENTRETOISE Plus d'informationsQuantité requise : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/8/2/img/65682.jpg)
15 |
RONDELLE PLATE (5.3X14X1) ORIGINE PIAGGIO COMMUN A LA GAMME -097733- Plus d'informationsQuantité requise : 3 |
|||||||||
|
16 |
031059 - BOULON S03105900 Plus d'informationsQuantité requise : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
17 |
COLLIER DE SERRAGE NYLON TYPE RILSAN 4,8X270MM ORIGINE PIAGGIO COMMUN A LA GAMME -257134- Plus d'informationsQuantité requise : 1 |
|||||||||
|
18 |
583817 - EQUERRE Plus d'informationsQuantité requise : 1 |
|||||||||
|
19 |
583843 - EQUERRE Plus d'informationsQuantité requise : 1 |
|||||||||
|
20 |
VIS BRIDE TH (6X10) ORIGINE PIAGGIO COMMUN A LA GAMME -969296- Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/4/0/img/70940.JPG)
21 |
ECROU BRIDE (D6) DE CULASSE ORIGINE PIAGGIO COMMUN A LA GAMME -969224- Plus d'informationsQuantité requise : 2 |
|||||||||
|
22 |
583917 - EQUERRE Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/5/img/66655.jpg)
23 |
VIS BRIDE TH (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -484123- Plus d'informationsQuantité requise : 2 |
|||||||||
