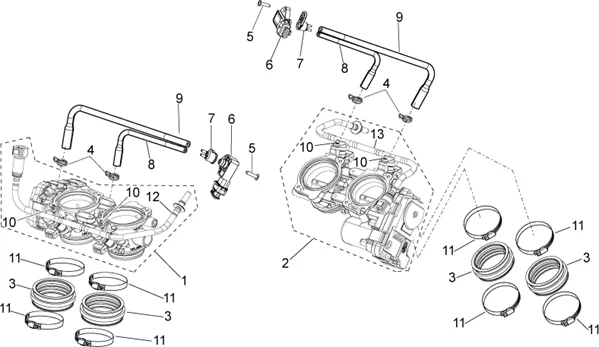

Moteur : 03.060 CORPS À PAPILLON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/562/RSV4_1000_Racing_Factory_LE_2015_03.060.PNG)
1 |
857303 - CORPS A PAPILLON AVANT Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
857304 - CORPS A PAPILLON ARRIERE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/3/7/7/img/40377.JPG)
3 |
MANCHON/RACCORD DE PIPE ADMISSION ORIGINE APRILIA 1000-1100 RSV4 2009> -857305- Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/0/img/72890.jpg)
4 |
COLLIER DE SERRAGE DURITE (7X10) ORIGINE PIAGGIO COMMUN A LA GAMME -CM002903- Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
5 |
VIS PARKER (5X20) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152329- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/7/3/img/67973.jpg)
6 |
DETECTEUR DE PRESSION ADMISSION ORIGINE PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000 RSV-4, TUONO V4, 850 SRV/GILERA 800 GP -6423025- Plus d'informationsQuantité requise : 2 |
||||||
|
7 |
894658 - RACCORD Plus d'informationsQuantité requise : 2 |
||||||
|
8 |
2B001484 - TUYAU Plus d'informationsQuantité requise : 2 |
||||||
|
9 |
2B001483 - TUYAU Plus d'informationsQuantité requise : 2 |
||||||
|
10 |
896567 - VIS FIX. Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/5/7/img/69757.jpg)
11 |
COLLIER SERRAGE TUBE ORIGINE PIAGGIO COMMUN A LA GAMME APRILIA/MOTO GUZZI -857306- Plus d'informationsQuantité requise : 8 |
||||||
|
12 |
896565 - TUYAU ESSENCE CPL Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
896566 - TUYAU ESSENCE CPL Plus d'informationsQuantité requise : 1 |
