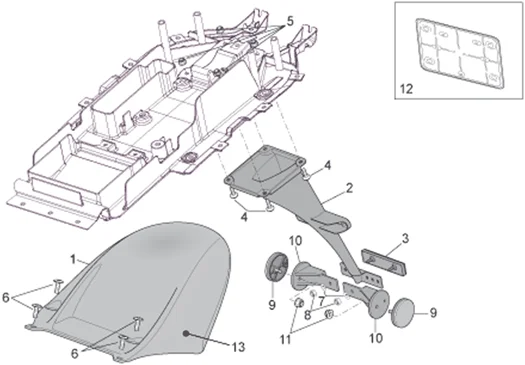

Chassis : 28.20 GARDE-BOUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/318/RSV_1000_Tuono_2006-2009_28.20.PNG)
1 |
AP8126983 - PARAFANGO POST. Plus d'informationsQuantité requise : 1 |
|||||||||
|
2 |
AP8126949 - PORTATARGA Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/9/6/img/45896.JPG)
3 |
AP8112916 - CATADIOPTRE FEU ARRIERE Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
4 |
VIS BRIDE BTR (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152246- Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
5 |
ECROU BRIDE AUTOBLOQUANT/NYLSTOP (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152299- Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/1/img/71961.jpg)
6 |
VIS BTR DE CARENAGE (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152302- Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/5/img/71825.jpg)
7 |
RONDELLE PLATE (4X9) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150158- Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
8 |
ECROU AUTOBLOQUANT/NYLSTOP (M4) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150204- Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/5/img/72325.jpg)
9 |
CATADIOPTRE ARRIERE ORIGINE PIAGGIO COMMUN A LA GAMME -AP8224164- Plus d'informationsQuantité requise : 2 |
|||||||||
|
10 |
AP8134783 - SUPPORTO CATADIOTTRO Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
11 |
ECROU BRIDE AUTOBLOQUANT/NYLSTOP (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP81523066- Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/1/img/71801.jpg)
12 |
SUPPORT DE PLAQUE IMMATRICULATION ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI ET MAXISCOOTER APRILIA -AP8149034- Plus d'informationsQuantité requise : 1 |
|||||||||
|
13 |
AP8177792 - DECALCO PRESSIONE GOMME/TEN.CA Plus d'informationsQuantité requise : 1 |
|||||||||
