Eclatés de véhicule - APRILIA RSV2 1000 RSV 1000 2004-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

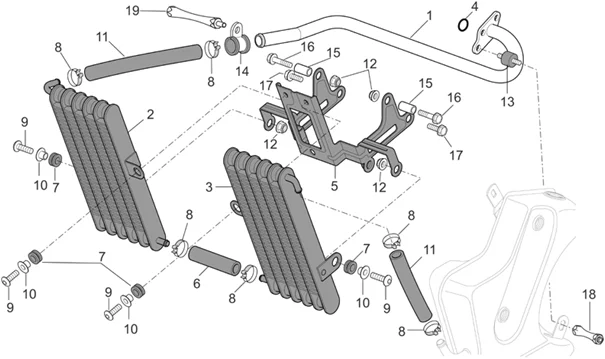

Chassis : 28.35 RADIATEUR HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/316/RSV_1000_2004-2008_28.35.PNG)
1 |
AP8106388 - TUYAU HUILE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
853297 - RADIATEUR HUILE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/5/7/5/img/49575.JPG)
4 |
JOINT TORIQUE (115) ORIGINE APRILIA COMMUN A LA GAMME -AP8144008- Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
AP8154034 - SUPPORTO RADIATORI OLIO Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
AP8144518 - TUBO COLLEGAMENTO RADIAT.OLIO Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.JPG)
7 |
CAOUTCHOUC/ENTRETOISE ORIGINE PIAGGIO COMMUN A LA GAMME -AP8120030- Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/2/img/71172.jpg)
8 |
COLLIER CLIC (17,5X8) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8102349- Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/4/img/71914.jpg)
9 |
VIS BTR TETE BOMBEE (6X25) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152117- Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
10 |
DOUILLE EN T (DIAMETRE INTERIEUR 6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8221023- Plus d'informationsQuantité requise : 4 |
||||||
|
11 |
TUYAU -2B006560- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
12 |
ECROU BRIDE AUTOBLOQUANT/NYLSTOP (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152299- Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/5/9/5/img/49595.jpg)
13 |
SILENTBLOC ORIGINE PIAGGIO COMMUN A LA GAMME -AP8144061- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/2/1/4/img/45214.jpg)
14 |
COLLIER DE TUYAU HUILE ORIGINE PIAGGIO APRILIA 1000 RSV-2, TUONO, FUTURA, FALCO, CAPONORD -AP8102731- Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
AP8121313 - DOUILLE CONIQUE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
16 |
VIS BRIDE TH (6X30) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152281- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
17 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152278- Plus d'informationsQuantité requise : 2 |
||||||
|
18 |
AP8121659 - DISTANZIALE CARENA SX Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
AP8121658 - DISTANZIALE CARENA DX Plus d'informationsQuantité requise : 1 |
