Eclatés de véhicule - APRILIA RS 125 RS4 125 4T 2011-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

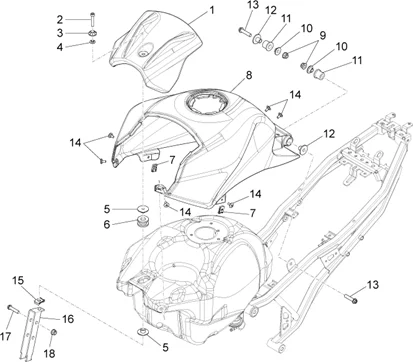

Carrosserie : 02.090 COUVRE-RÉSERVOIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/751/RS4_125_4T_2011-2013_02.090.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/0/9/2/img/62092.jpg)
1 |
COUVERCLE RESERVOIR ESSENCE ORIGINE APRILIA 50-125 RS4, TUONO NOIR -B04347600XN6- Plus d'informationsQuantité requise : 1 |
||||||
1 |
B04347600XNG - COUVERCLE Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
B04347600XRA - COUVERCLE AVANT * Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/2/img/71852.jpg)
2 |
VIS BTR (6X35) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150285- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/2/img/71902.JPG)
3 |
RONDELLE SPECIALE ORIGINE PIAGGIO COMMUN A LA GAMME MOTO -AP8150536- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
4 |
DOUILLE/ENTRETOISE (6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8121032- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/0/3/6/img/43036.jpg)
5 |
DOUILLE EN T (6X30) ORIGINE PIAGGIO COMMUN A LA GAMME -898715- Plus d'informationsQuantité requise : 2 |
||||||
|
6 |
AP8144713 - GOMMINO Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
7 |
ECROU TOLE (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8102375- Plus d'informationsQuantité requise : 2 |
||||||
|
8 |
COUVERCLE DE RESERVOIR ORIGINE PIAGGIO APRILIA 50-125 RS BLANC -89769600XB6- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/8/1/5/img/42815.jpg)
8 |
COUVERCLE DE RESERVOIR ORIGINE PIAGGIO APRILIA 50-125 RS E3/E4 2011>2018 NOIR -89769600XN2- Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
89769600XN1 - COUVERCLE Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
89769600XG7 - COUVERCLE ARRIERE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
9 |
ECROU BRIDE AUTOBLOQUANT/NYLSTOP (M8) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152300- Plus d'informationsQuantité requise : 2 |
||||||
|
10 |
AP8121716 - "DOUILLE EN ""T""" Plus d'informationsQuantité requise : 2 |
||||||
|
11 |
AP8120947 - CAOUTCHOUC POT Plus d'informationsQuantité requise : 2 |
||||||
|
12 |
AP8121804 - DOUILLE SUPPORT RESERVOIR Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/2/img/71952.jpg)
13 |
VIS BRIDE TH (8X40) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152290- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
14 |
VIS BTR TETE BOMBEE (5X9) ORIGINE PIAGGIO COMMUN A LA GAMME MOTO -AP8152339- Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
15 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/8/0/6/7/img/58067.jpg)
16 |
CAVALIER DE RESERVOIR ORIGINE PIAGGIO APRILIA 50-125 RS, TUONO -AP8234153- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
17 |
VIS BRIDE TH (6X30) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152281- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
18 |
ECROU BRIDE AUTOBLOQUANT/NYLSTOP (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152299- Plus d'informationsQuantité requise : 2 |
