Eclatés de véhicule - APRILIA RS 457 4T 8V E5+ ABS 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

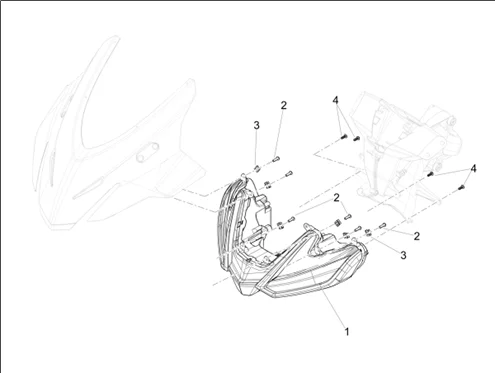

Feux - instruments : 08.01 ECLAIRAGES AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1228/RS_457_4T_8V_E5_ABS_2024_EMEA_08.01.png)
Rechercher
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/2/7/8/6/img/212786.jpg)
1 |
OPTIQUE/PHARE/PROJECTEUR ORIGINE APRILIA RS 457 -2B0099839A Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/3/7/img/70837.jpg)
2 |
VIS BTR (5X12) DE CARENAGE ORIGINE PIAGGIO COMMUN A LA GAMME MOTO APRILIA ET MOTO-GUZZI V7-V9 -896174 Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
3 |
ECROU TOLE (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -00G04401462 Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/8/img/73358.jpg)
4 |
VIS TORX (4,2X13) AUTOTARAUDEUSE ORIGINE PIAGGIO COMMUN A LA GAMME -CM178603 Plus d'informationsQuantité requise : 4 |
