Eclatés de véhicule - DERBI RAMBLA 125 Rambla 125 2ver E3 2008 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

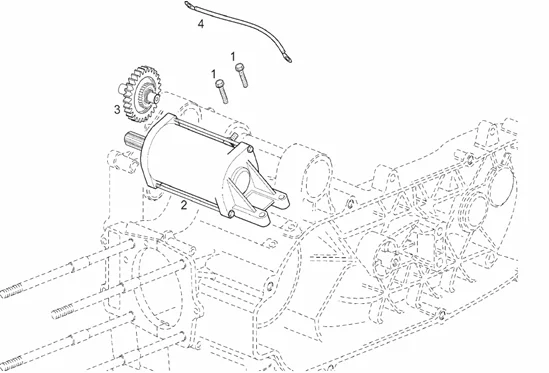

Moteur : 57 DÉMARREUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1107/Rambla_125_2ver_E3_2008_(EMEA)_57.png)
Rechercher
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/7/1/6/img/81716.jpg)
1 |
DEMARREUR ORIGINE PIAGGIO 125-300 MP3, YOURBAN, VESPA GTS, X7, BEVERLY, 250 X8, X-EVO, X9/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC, SCARABEO, SPORT-CITY -58218R5 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
2 |
VIS BRIDE TH (6X25) ORIGINE PIAGGIO COMMUN A LA GAMME/KICK DERBI 50 SENDA -B016774 Plus d'informationsQuantité requise : 1 |
||||||
3 |
8427035 - ENSEMBLE RENVOI Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
639737 - CABLE Plus d'informationsQuantité requise : 1 |
