Eclatés de véhicule - APRILIA RALLY 50 H2O 1996-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

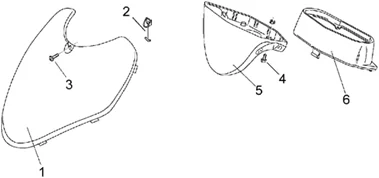

Chassis : 28.05 CARROSSERIE AV. I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/263/Rally_50_H2O_1996-1999_28.05.PNG)
1 |
AP8238477 - COFFRE, GRIS OP. Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
AP8239214 - COFFRE, BLEU SAPHIR OP Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
3 |
VIS BRIDE BTR (5X16) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152298- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
4 |
VIS BRIDE TH (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152272- Plus d'informationsQuantité requise : 4 |
||||||
|
5 |
AP8238486 - SUPP.TABL. B INF.GRIS M Plus d'informationsQuantité requise : 1 |
