Eclatés de véhicule - VESPA VESPA PRIMAVERA 125 Primavera 125 4T 3V iGET ABS E4 2016-2020(EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

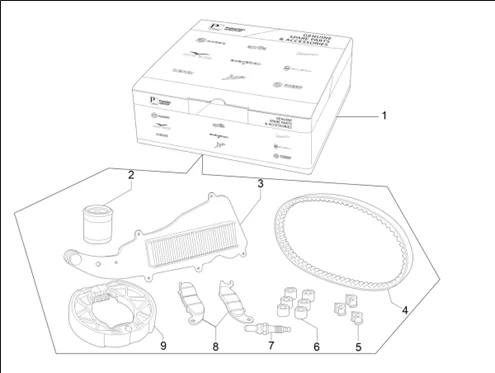

Maintenance : 07.01 COMPLETE WEAR AND MAINTENANCE KIT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1321/Primavera_125_4T_3V_iGET_ABS_E4_2016-2020EMEA_07.01.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/5/7/2/img/204572.jpg)
1 |
KIT ENTRETIEN MAXISCOOTER ORIGINE PIAGGIO 125 VESPA PRIMAVERA IGET 2016>2020 -1R000558 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/0/6/4/9/img/210649.jpg)
2 |
FILTRE A HUILE MAXISCOOTER ORIGINE PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA ATLANTIC, SR MAX/GILERA NEXUS -1A022356 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/0/8/0/img/157080.jpg)
3 |
ELEMENT/MOUSSE DE FILTRE A AIR (PREMIUM) MAXISCOOTER ORIGINE PIAGGIO 125 PRIMAVERA 3V 2013>, SPRINT 3V 2014> -B0180700P Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/2/2/8/img/127228.jpg)
4 |
COURROIE MAXISCOOTER ORIGINE PIAGGIO 125 VESPA PRIMAVERA 2013>, SPRINT 2014>, LIBERTY 2013> (3 SOUPAPES) -1A003396 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/2/1/9/img/127219.jpg)
5 |
GUIDE/PATIN DE VARIATEUR ORIGINE PIAGGIO 125 LIBERTY 2014, VESPA PRIMAVERA 2013>, VESPA SPRINT 2014>, VESPA-S 2012> 3V -1A002460 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/7/7/0/img/127770.jpg)
6 |
GALET/ROULEAU ORIGINE PIAGGIO 125 LIBERTY, VESPA PRIMAVERA, SPRINT IGET 2016> (VENDU A L'UNITE) -CM169105 Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/1/4/img/67814.jpg)
7 |
BOUGIE CR8EB ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -638853 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/0/4/img/68004.jpg)
8 |
PLAQUETTE DE FREIN ORIGINE PIAGGIO 125 X-EVO AV, X8 AV, X9 AV, 125-300 VESPA GTS AV, 400 X-EVO AV+AR, 125 FLY AV/GILERA 800 GP AR/APRILIA 854 SRV AR, 125-300 SR-MAX AV+AR (PAIRE) (HENG-TONG) -647078 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/2/4/img/67024.jpg)
9 |
MACHOIRES DE FREIN ARRIERE ORIGINE PIAGGIO 125 FLY, LIBERTY, X8 STREET, VESPA PRIMAVERA, VESPA SPRINT/APRILIA 125 MOJITO, SPORT-CITY (JEU) -56294R5 Plus d'informationsQuantité requise : 1 |
