Eclatés de véhicule - PIAGGIO VU PORTER NP6 1500 Porter NP6 (TW 3250) M.Y. 2022
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

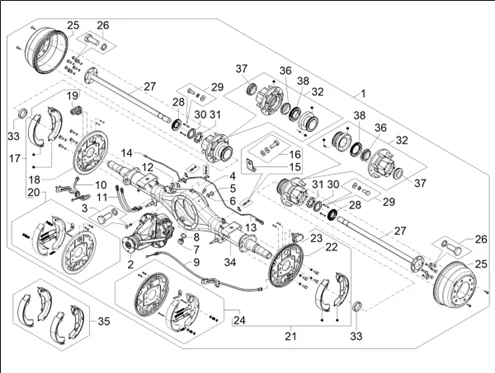

03_châssis - organes de transmission : 03.02 02_ESSIEU ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1351/Porter_NP6_TW_3250_M.Y._2022_03.02.png)
1 |
WET240010101A0 REAR AXLE ASSY CAB TW Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/7/1/1/5/img/177115.jpg)
1 |
ESSIEU ARRIERE COMPLET ORIGINE PIAGGIO PORTER NP6 TW 2021> -WET240010103A0 Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
WET240210102A0 - ENSEMBLE DIFFERENTIEL Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
WET240210103A0 - ENSEMBLE DIFFERENTIEL Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
WET292550204A0 CONE FIXING SCREW AND WASHER Plus d'informationsQuantité requise : 10 |
||||||
|
4 |
WET340420101A0 - CLAPET DE DECHARGE HUILE Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
WET240280102A0 OIL FILLING PLUG AND SEALING WASHER Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
WET240280102A0 OIL FILLING PLUG AND SEALING WASHER Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
WET240280101A0 - BOUCHON VID.HUILE Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
WET240280101A0 - BOUCHON VID.HUILE Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
WET240160200A0 - CABLE SECONDAIRE FREIN A MAIN GAUCHE Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
WET240160500A0 - CABLE SECONDAIRE FREIN A MAIN DROITE Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
WET356005090A0 (*)REAR BRAKE HOSE ASSY Plus d'informationsQuantité requise : 2 |
||||||
|
12 |
WET173220100A0 BRAKE HOSE LOCKING PLATE Plus d'informationsQuantité requise : 2 |
||||||
|
13 |
WET356004082A0 - TUYAU RIGIDE FREIN GAUCHE Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
WET356004081A0 - TUYAU RIGIDE FREIN DROITE Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
WET356007010A0 BRAKE PIPE CLAMP Plus d'informationsQuantité requise : 3 |
||||||
|
16 |
WET292550200A0 BRAKE PIPE FIXING SCREW Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/0/7/3/img/187073.jpg)
17 |
ENSEMBLE DE FREIN ARRIERE DROIT ORIGINE PIAGGIO PORTER NP6 DOUBLE ESSIEU 2021> -WET240100401A0 Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
WET240120101A0 - (*) BRAKE BASE PLATE RR Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/1/9/9/7/img/201997.jpg)
19 |
CYLINDRE DE FREIN ARRIERE ORIGINE PIAGGIO PORTER NP6 2021>TW -WET24000000007 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/3/1/0/img/173310.jpg)
20 |
KIT DE PIECES DE RECHANGE QUINCAILLERIE FREIN ARRIERE DROIT ORIGINE PORTER NP6 2021> -WET240330200A0 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/0/7/2/img/187072_20260109155108.jpg)
21 |
ENSEMBLE DE FREIN ARRIERE GAUCHE ORIGINE PIAGGIO PORTER NP6 DOUBLE ESSIEU 2021> -WET240100301A0 Plus d'informationsQuantité requise : 1 |
||||||
|
22 |
WET240120100A0 - (*) BRAKE BASE PLATE LF Plus d'informationsQuantité requise : 1 |
||||||
|
23 |
CYLINDRE DE FREIN ARRIERE ORIGINE PIAGGIO PORTER NP6 2021>TW -WET24000000007 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/3/1/2/img/173312.jpg)
24 |
KIT DE PIECES DE RECHANGE QUINCAILLERIE FREIN ARRIERE GAUCHE ORIGINE PORTER NP6 2021> -WET240330100A0 Plus d'informationsQuantité requise : 1 |
||||||
|
25 |
TAMBOUR DE FREIN ARRIERE ORIGINE PIAGGIO PORTER NP6 TW 2021> -WET240040101A0 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/0/1/9/0/img/200190.jpg)
26 |
GOUJON DE ROUE ORIGINE PIAGGIO PORTER NP6 TW3000/3250-WET292550207A0 Plus d'informationsQuantité requise : 12 |
||||||
|
27 |
WET240240100A0 - HALFSHAFT REAR Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/0/1/9/2/img/200192.jpg)
28 |
JOINT DE PONT ARRIERE ORIGINE PIAGGIO PORTER NP6 TW 2021> -WET240280100A0 Plus d'informationsQuantité requise : 2 |
||||||
|
29 |
WET292550203A0 - HALFSHAFT RETAINING RING FIXING BOLT Plus d'informationsQuantité requise : 2 |
||||||
|
30 |
WET240240200A0 - AXLE SLEEVE Plus d'informationsQuantité requise : 2 |
||||||
|
31 |
WET240180100A0 - HUB RING Plus d'informationsQuantité requise : 2 |
||||||
|
32 |
MOYEU DE ROUE ARRIERE ORIGINE PIAGGIO PORTER NP6 2021> -WET240250300A0 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/0/1/9/7/img/200197.jpg)
33 |
BAGUE ETANCHEITE ESSIEU ARRIERE ORIGINE PIAGGIO NP6 SW 2021> -WET240250600A0 Plus d'informationsQuantité requise : 2 |
||||||
|
34 |
WET240230101A0 - REAR AXLE HOUSING ASSEMBLY Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/0/7/1/img/187071.jpg)
35 |
KIT MACHOIRES DE FREIN ARRIERE ORIGINE PIAGGIO PORTER NP6 2021> -1R000531 Plus d'informationsQuantité requise : 1 |
||||||
|
36 |
KIT MACHOIRES DE FREIN ARRIERE ORIGINE PIAGGIO PORTER NP6 2021> -1R000531 Plus d'informationsQuantité requise : 2 |
||||||
|
37 |
WET24000000010 - (*) RR WHEEL HUB INNER BEARING (32010JR Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/2/2/0/2/4/img/222024.jpg)
38 |
JOINT SPI PONT ARRIERE ORIGINE PIAGGIO PORTER NP6 2021> TW 3000 /3250 -WET24000000012 Plus d'informationsQuantité requise : 2 |
