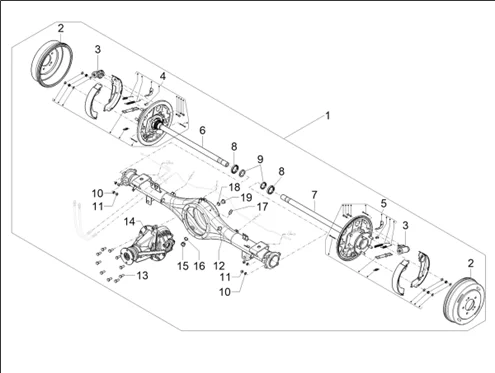

03_châssis - organes de transmission : 03.02 02_ESSIEU ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1255/Porter_NP6_(SW_2650)_ICE_-_2025_03.02.png)
1 |
Rear axle (SW - STD) |
||||||
|
1 |
Rear axle assy (SW-HS) |
||||||
|
2 |
TAMBOUR DE FREIN ARRIERE ORIGINE PIAGGIO PORTER NP6 2021> SW -WET240040100A0- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/3/0/7/img/173307.jpg)
3 |
CYLINDRE DE FREIN ARRIERE ORIGINE PIAGGIO PORTER NP6 2021>SW -WET240130100A0 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/3/1/0/img/173310.jpg)
4 |
KIT DE PIECES DE RECHANGE QUINCAILLERIE FREIN ARRIERE DROIT ORIGINE PORTER NP6 2021> -WET240330200A0 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/3/1/2/img/173312.jpg)
5 |
KIT DE PIECES DE RECHANGE QUINCAILLERIE FREIN ARRIERE GAUCHE ORIGINE PORTER NP6 2021> -WET240330100A0 Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
WET240240101A0 HALFSHAFT Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
WET240240102A0 HALFSHAFT RL Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/3/1/5/img/173315.jpg)
8 |
JOINT SPI (42X56X9) PONT ARRIERE ORIGINE PIAGGIO PORTER NP6 2021> SW -WET240280103A0 Plus d'informationsQuantité requise : 2 |
||||||
|
9 |
WET240240201A0 AXLE SLEEVE Plus d'informationsQuantité requise : 2 |
||||||
|
10 |
WET240280105A0 HALFSHAFT WASHER Plus d'informationsQuantité requise : 8 |
||||||
|
11 |
WET340330101A0 HALFSHAFT NUT Plus d'informationsQuantité requise : 8 |
||||||
|
12 |
WET240230100A0 REAR AXLE HOUSING ASSEMBLY Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
WET292550204A0 CONE FIXING SCREW AND WASHER Plus d'informationsQuantité requise : 10 |
||||||
|
14 |
WET240210100A0 DIFFERENTIAL ASSEMBLY Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
WET240210101A0 DIFFERENTIAL ASSEMBLY Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
WET240280104A0 OIL DRAINING PLUG AND SEALING WASHER Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/3/2/8/img/173328.jpg)
16 |
JOINT EVACUATION HUILE PONT ARRIERE ORIGINE PIAGGIO PORTER NP6 2021> -WET240280106A0 Plus d'informationsQuantité requise : 1 |
||||||
|
17 |
WET340420100A0 OIL OVERPRESSURE VALVE Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
WET240280107A0 OIL FILLING SEALING WASHER Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
WET240280102A0 OIL FILLING PLUG AND SEALING WASHER Plus d'informationsQuantité requise : 1 |
