Eclatés de véhicule - APRILIA PEGASO 650 1997-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

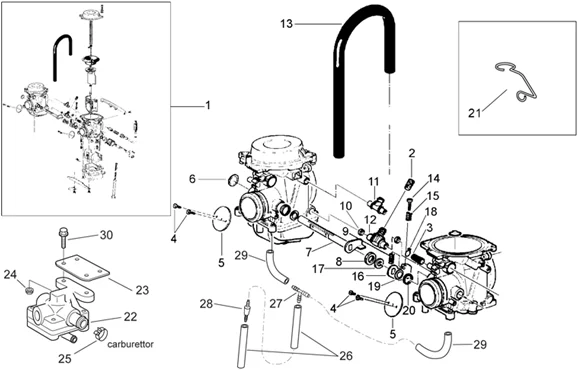

Moteur : 29.32 CARBURATEUR I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/304/Pegaso_650_1997-2000_29.32.PNG)
2 |
AP8122862 - FILTRE ESSENCE Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP8122847 - COUVERCLE Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
AP8122816 - ECROU Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
AP8122815 - TUYAU DE RACCORD Plus d'informationsQuantité requise : 1 |
||||||
|
17 |
AP8122861 - RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
|
20 |
AP8122801 - JOINT SPI Plus d'informationsQuantité requise : 2 |
||||||
|
21 |
AP8221206 - CROCHET CABLE PORTE-CASQUE Plus d'informationsQuantité requise : 1 |
||||||
|
22 |
AP8104096 - ROBINET ESSENCE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
24 |
ECROU BRIDE AUTOBLOQUANT/NYLSTOP (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152299- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/9/img/71169.jpg)
25 |
COLIIER DURITE (D15) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8102159- Plus d'informationsQuantité requise : 2 |
||||||
|
26 |
AP8220402 - TUYAU Plus d'informationsQuantité requise : 1 |
||||||
|
28 |
AP8104251 - SOUPAPE DE RETENUE Plus d'informationsQuantité requise : 1 |
||||||
|
29 |
AP8106556 - TUYAU RENIFLARD RADIATEUR Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
30 |
VIS BRIDE TH (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152279- Plus d'informationsQuantité requise : 2 |
Tous les éclatés de ce véhicule
-
