Eclatés de véhicule - MOTO GUZZI NEVADA 750 Nevada Classic IE 750 2004-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

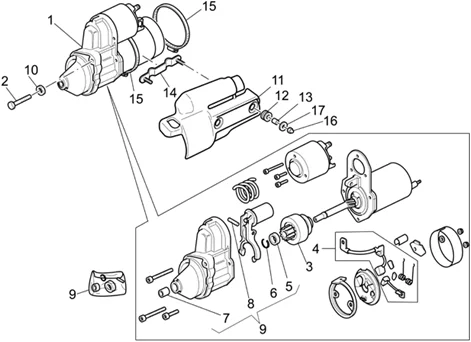

Moteur : 34.44 DÉMARREUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/502/Nevada_Classic_IE_750_2004-2008_34.44.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/9/4/4/img/130944.jpg)
1 |
DEMARREUR (VALEO) ORIGINE PIAGGIO GAMME MOTO-GUZZI -GU30730711- Plus d'informationsQuantité requise : 1 |
||||||
2 |
GU98082435 - VIS Plus d'informationsQuantité requise : 2 |
||||||
|
3 |
GU30530510 - PIGNON COMPLETE Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
GU30530511 - KIT DE REVISION BROSSE Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
KIT REVISION DE DEMARREUR ORIGINE PIAGGIO MOTO-GUZZI GAMME ANCIENNE MOTORISATION -GU30530512- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/4/img/73554.JPG)
10 |
GU95008208 - RONDELLE 8,4X15X1,8 Plus d'informationsQuantité requise : 2 |
||||||
|
11 |
GU32733361 - COUVERCLE GRIS CROME Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
GU32733360 - COUVERCLE DEMARREUR BRUT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/6/1/img/132361.jpg)
12 |
CAOUTCHOUC PASSE FIL (8X18) ORIGINE PIAGGIO COMMUN A LA GAMME -GU91551086-- Plus d'informationsQuantité requise : 2 |
||||||
|
13 |
GU91180607 - ENTRETOISE Plus d'informationsQuantité requise : 2 |
||||||
|
14 |
GU01733830 - PIASTRINA Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
GU93306050 - COLLIER Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/6/4/img/132564.jpg)
16 |
ECROU BORGNE (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -GU92787205- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/6/2/img/132662.JPG)
17 |
RONDELLE PLATE (5.2X18X1.5) ORIGINE PIAGGIO COMMUN A LA GAMME -GU95005304- Plus d'informationsQuantité requise : 2 |
