Eclatés de véhicule - DERBI MULHACEN 125 Mulhacen 125 4T E3 2010 (EMEA)

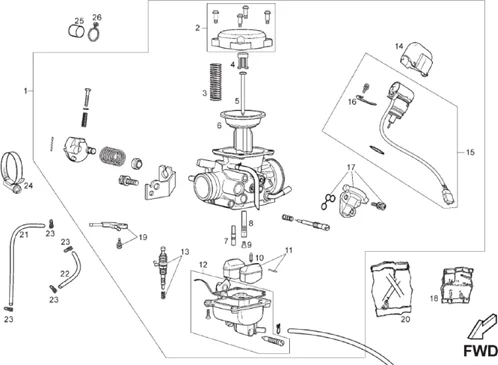

Moteur : 65.26 CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1112/Mulhacen_125_4T_E3_2010_(EMEA)_65.26.png)
65.26 CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1112/Mulhacen_125_4T_E3_2010_(EMEA)_65.26.png)
![]() 1 |
CARBURATEUR ORIGINE DERBI 125 SM DRD -CM1282185 Plus d'informationsQuantité requise : 0 |
||||||
![]() 2 |
COUVERCLE DE BOISSEAU ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250 CC -877764- Plus d'informationsQuantité requise : 0 |
||||||
![]() 3 |
RESSORT DE RAPPEL DE BOISSEAU DE GAZ ORIGINE PIAGGIO 125 MP3 2007>, BEVERLY 2005>, X8 2004>, X9 2003>, X10 2012>, X-EVO 2007>, VESPA GTS 2007>/GILERA 125 NEXUS 2007>, RUNNER 4T 2005> -CM140902- Plus d'informationsQuantité requise : 0 |
||||||
![]() 4 |
AGRAFE DE FIXATION D'AIGUILLE POUR CARBU CVEK ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125 CC -842518- Plus d'informationsQuantité requise : 0 |
||||||
![]() 5 |
AIGUILLE CARBURATEUR ORIGINE PIAGGIO 125 MP3, X-EVO, X9, X8, VESPA GTS -CM140208- Plus d'informationsQuantité requise : 0 |
||||||
![]() 6 |
BOISSEAU ORIGINE PIAGGIO 125 MP3 2007>, BEVERLY 2005>, X8 2004>, X9 2003>, X10 2012>, X-EVO 2007>, VESPA GTS 2007>/GILERA 125 NEXUS 2007>, RUNNER 4T EN ALU AVEC MEPLAT POUR CARBU KEIHIN -CM140301 Plus d'informationsQuantité requise : 0 |
||||||
![]() 7 |
CM140101 - GIGLEUR MIN 35 Plus d'informationsQuantité requise : 0 |
||||||
![]() 8 |
CM144605 - TUBE MELANGEUR Plus d'informationsQuantité requise : 0 |
||||||
![]() 9 |
CM129906 - GIGLER MAXI 100 Plus d'informationsQuantité requise : 0 |
||||||
![]() 10 |
POINTEAU ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 CC 4T ET MAXISCOOTER 125 CC -CM147102- Plus d'informationsQuantité requise : 0 |
||||||
![]() 11 |
FLOTTEUR DE CARBURATEUR ORIGINE PIAGGIO 125 MP3 2007>, BEVERLY 2005>, X8 2004>, X9 2003>, X10 2012>, X-EVO 2007>, VESPA GTS 2007>/GILERA 125 NEXUS 2007>, RUNNER 4T 2005>/APRILIA 125 ATLANTIC -842522- Plus d'informationsQuantité requise : 0 |
||||||
![]() 12 |
JOINT DE CUVE POUR CARBURATEUR ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250 CC -842523- Plus d'informationsQuantité requise : 0 |
||||||
![]() 13 |
CUVE DE CARBURATEUR AVEC POMPE DE REPRISE ORIGINE PIAGGIO 125 MP3 2007>, BEVERLY 2005>, X8 2004>, X9 2003>, X10 2012>, X-EVO 2007>, VESPA GTS 2007>/GILERA 125 NEXUS 2007>, RUNNER 4T 2005> -CM156710- Plus d'informationsQuantité requise : 0 |
||||||
![]() 14 |
CAPUCHON DE STARTER ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -828844- Plus d'informationsQuantité requise : 0 |
||||||
![]() 15 |
STARTER ORIGINE PIAGGIO 125 MP3 2007>, BEVERLY 2005>, X8 2004>, X9 2003>, X10 2012>, X-EVO 2007>, VESPA GTS 2007>/GILERA 125 NEXUS 2007>, RUNNER 4T 2005>/APRILIA 125 ATLANTIC 2003 -CM142913- Plus d'informationsQuantité requise : 0 |
||||||
![]() 16 |
PLAQUETTE DE CARBURATEUR ORIGINE 50-125-200 COMMUN A LA GAMME 2016< -2828843 Plus d'informationsQuantité requise : 0 |
||||||
![]() 17 |
842519 - KIT CORPS STARTER Plus d'informationsQuantité requise : 0 |
||||||
![]() 18 |
494921 - JEU DE JOINTS Plus d'informationsQuantité requise : 0 |
||||||
![]() 19 |
842516 - KIT RECHAUFFEUR Plus d'informationsQuantité requise : 0 |
||||||
![]() 20 |
842521 - KIT TUYAU Plus d'informationsQuantité requise : 0 |
||||||
![]() 21 |
CM200401 - TUYAU Plus d'informationsQuantité requise : 0 |
||||||
![]() 22 |
CM200402 - TUYAU Plus d'informationsQuantité requise : 0 |
||||||
![]() 23 |
00D03700131 - CRAMPON ELASTIQUE TUBE ESSE Plus d'informationsQuantité requise : 0 |
||||||
![]() 24 |
864480 - COLLIER Plus d'informationsQuantité requise : 0 |
||||||
![]() 25 |
CAPUCHON/PRISE D'AIR DE CARBURATEUR ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250 CC -841695 Plus d'informationsQuantité requise : 0 |
||||||
![]() 26 |
00H06400291 - COLLIER Plus d'informationsQuantité requise : 0 |
