Eclatés de véhicule - APRILIA MOJITO 150 2003-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

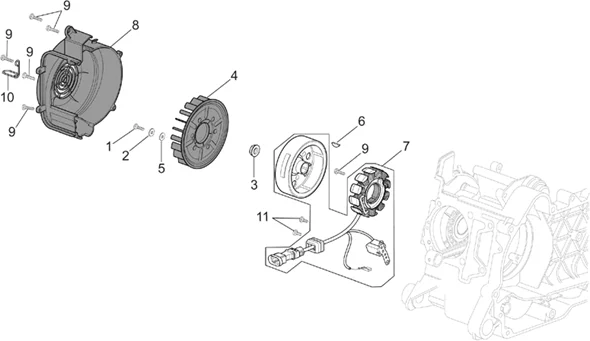

Moteur : 29.55 VOLANT MAGNÉTIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/694/Mojito_150_2003-2007_29.55.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/2/img/66032.jpg)
1 |
VIS CRUCIFORME (5X16) ORIGINE PIAGGIO COMMUN LA GAMME -259151- Plus d'informationsQuantité requise : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/0/img/63840.jpg)
2 |
RONDELLE (5,3X10X0,5) ORIGINE PIAGGIO COMMUN A LA GAMME -006975- Plus d'informationsQuantité requise : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/3/img/72693.jpg)
3 |
ECROU ALLUMAGE/POULIE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME MAXISCOOTER 125-250 -B015804- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/4/4/img/68544.JPG)
4 |
VENTILATEUR REFROIDISSEMENT MOTEUR ORIGINE PIAGGIO 125 FLY, LIBERTY, VESPA LX, VESPA-S, X8 STREET/APRILIA 125 SR, SPORT-CITY 2015< -825430- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/8/2/img/65682.jpg)
5 |
RONDELLE PLATE (5.3X14X1) ORIGINE PIAGGIO COMMUN A LA GAMME -097733- Plus d'informationsQuantité requise : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/1/img/63721.jpg)
6 |
CLAVETTE ALLUMAGE ORIGINE PIAGGIO/APRILIA/GILERA/MOTO GUZZI/VESPA COMMUN A LA GAMME -000267- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/7/8/img/67178.jpg)
7 |
ALLUMAGE COMPLET ORIGINE PIAGGIO 125 LIBERTY, FLY, X8, X9-EVO, VESPA GT, VESPA LX, VESPA-S, TYPHOON/GILERA 125 RUNNER 4T/APRILIA 125 SPORT-CITY-ONE, ATLANTIC, MOJITO -58059R- Plus d'informationsQuantité requise : 1 |
|||||||||
8 |
825426 - CANALISATION Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/0/img/68770.jpg)
9 |
VIS CRUCIFORME (5X22) ORIGINE PIAGGIO COMMUN A LA GAMME -828662- Plus d'informationsQuantité requise : 7 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/7/8/img/68678.jpg)
10 |
PATTE D'ARRET DE DURITE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -827542- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/3/img/65443.jpg)
11 |
VIS CRUCIFORME (5X10) ORIGINE PIAGGIO COMMUN A LA GAMME -018575- Plus d'informationsQuantité requise : 2 |
|||||||||
