Eclatés de véhicule - APRILIA MOJITO 125 E3 2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

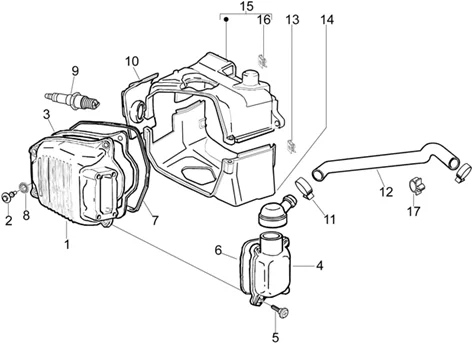

Moteur : 29.38 COUVRE-CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/255/Mojito_125_E3_2008_29.38.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/4/8/img/70648.jpg)
1 |
COUVRE CULASSE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125 CC AIR -877140- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
2 |
VIS TH (6X22) ORIGINE PIAGGIO COMMUN A LA GAMME -031091- Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/7/0/img/68870.jpg)
3 |
JOINT DE COUVRE CULASSE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125 CC AIR -8298176- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/0/9/img/68809.jpg)
4 |
COUVERCLE DE RENIFLARD ORIGINE PIAGGIO 125 FLY, LIBERTY, VESPA LX, VESPA-S -829008- Plus d'informationsQuantité requise : 1 |
||||||
5 |
828653 - BOULON Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/3/9/1/img/139391.jpg)
6 |
JOINT DE COUVRE CULASSE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 -1A003985- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/3/4/img/68534.jpg)
7 |
JOINT DE COUVRE CULASSE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125 CC AIR -825364- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/3/3/img/68533.jpg)
8 |
RONDELLE (12,2X18X0,5) ORIGINE PIAGGIO COMMUN A LA GAMME -825363- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/1/3/img/67813_d.jpg)
9 |
BOUGIE CR7EB ORIGINE PIAGGIO 125 FLY, LIBERTY, X8 STREET, VESPA LX, VESPA-S/APRILIA 125 MOJITO, SPORT-CITY ONE -638852- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/3/5/img/68535.jpg)
10 |
COUVERCLE BOUGIE ORIGINE PIAGGIO 125 LIBERTY, X8, FLY, LX 2012> -825368- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/6/img/72866.jpg)
11 |
COLLIER DURITE (19.8MM) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -CM001904- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/4/7/img/69247.jpg)
12 |
842737 - TUYAU RENIFLARD Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
826275 - PLAQUETTE Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
871760 - COIFFE CYLINDRE Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
871762 - COIFFE CYLINDRE Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
826275 - PLAQUETTE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/7/img/65967.JPG)
17 |
CLIPS RESSORT (D17) ORIGINE PIAGGIO COMMUN A LA GAMME -231590- Plus d'informationsQuantité requise : 1 |
