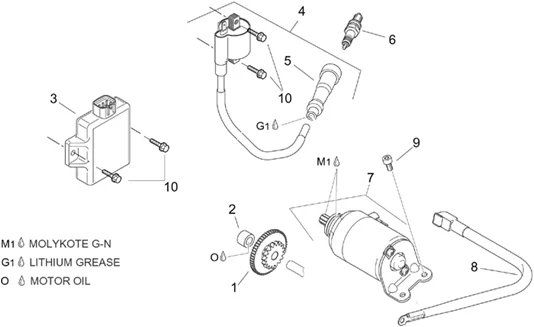

Moteur : 29.49 DÉMARREUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/248/Leonardo_150_1999-2001_29.49.PNG)
1 |
AP0634460 - PIGNON INTERMEDIAIRE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP0247930 - ENTRETOISE Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP0265407 - BO?TIER POUR BOBINE Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP0265630 - CENTRALE BOBINE (VERTE) Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
AP0265417 - BOBINE HT Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
AP0265242 - PIPE BOUGIE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/0/2/img/71102.jpg)
6 |
BOUGIE NGK CR8EVX ORIGINE PIAGGIO APRILIA 125 LEONARDO 1996>2004, SCARABEO 1999>2004 -AP0297921- Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
AP0295620 - DEMARREUR A/CABLAGE Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
AP0296390 - DEMARREUR Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
AP8124596 - CABLAGE RELAIS-DEMARR. Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/7/4/9/img/43749.jpg)
9 |
VIS BTR (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -AP0241930- Plus d'informationsQuantité requise : 2 |
||||||
|
9 |
AP0841331 - VIS Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/0/img/71940.JPG)
10 |
VIS BRIDE TH (5X20) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152274- Plus d'informationsQuantité requise : 4 |
