Eclatés de véhicule - APRILIA LEONARDO 125 1999-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

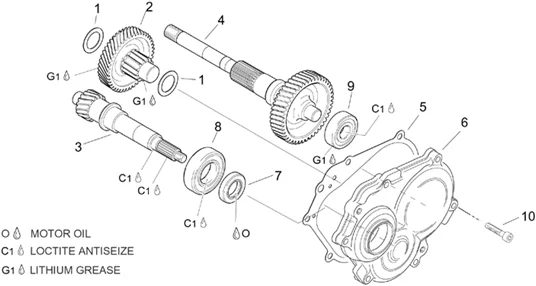

Moteur : 29.50 TRANSMISSION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/247/Leonardo_125_1999-2001_29.50.PNG)
1 |
AP0944468 - RACLEUR Plus d'informationsQuantité requise : 2 |
||||||
|
2 |
AP0220327 - ARBRE INTERMEDIAIRE Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP0220342 - ARBRE DE TRANSMISSION Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
AP0220335 - ARBRE SORTIE Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
AP0650202 - JOINT Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
AP0211495 - COUVERCLE TRANSMISSION Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
AP0930268 - JOINT SPI Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
AP0232768 - ROULEMENT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/5/2/6/img/43526.jpg)
9 |
ROULEMENT MOTEUR ORIGINE PIAGGIO APRILIA 125 AF1, CLASSIC, LEONARDO, PEGASO, RS, RX, SX, MX -AP0232291- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/5/2/4/img/44524.jpg)
10 |
VIS BTR (6X30) ORIGINE PIAGGIO COMMUN A LA GAMME -AP0840880- Plus d'informationsQuantité requise : 6 |
