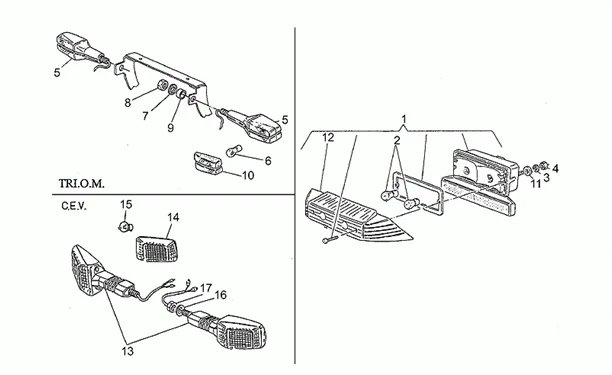

Chassis : 33.11 FEU ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/494/Le_Mans_1000_1983-1994_33.11.PNG)
2 |
GU93450224 - LAMPE (OU AMPOULE) 12V/5-21W Plus d'informationsQuantité requise : 2 |
||||||
|
4 |
GU92602206 - ECROU Plus d'informationsQuantité requise : 2 |
||||||
|
7 |
GU95022110 - RONDELLE EVENT. Plus d'informationsQuantité requise : 2 |
||||||
|
8 |
GU92602411 - ECROU Plus d'informationsQuantité requise : 2 |
||||||
|
11 |
GU93110060 - CAOUTCHOUC Plus d'informationsQuantité requise : 2 |
||||||
|
14 |
GU23753710 - VITRE CLIGNOTANT Plus d'informationsQuantité requise : 2 |
||||||
|
15 |
GU93450127 - LAMPE (OU AMPOULE) 12V-10W Plus d'informationsQuantité requise : 2 |
||||||
|
16 |
GU95022112 - RONDELLE EVENT. Plus d'informationsQuantité requise : 2 |
||||||
|
17 |
GU92602512 - ECROU BAS M12X1,25 Plus d'informationsQuantité requise : 2 |
