Eclatés de véhicule - MOTO GUZZI GT 1000 1987-1991
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

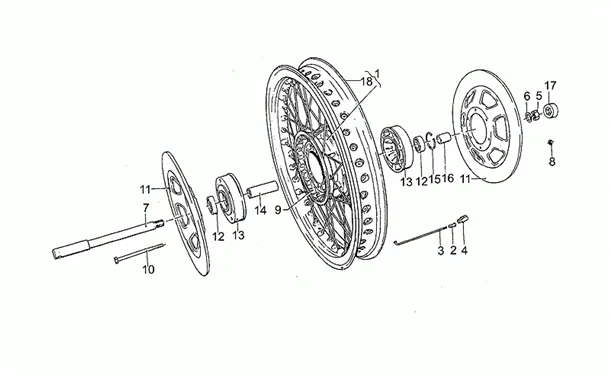

Chassis : 33.24 ROUE AV RAYONS-1E SÉRIE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/493/GT_1000_1987-1991_33.24.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/2/4/2/img/130242.JPG)
2 |
ECROU DE RAYON ORIGINE MOTO GUZZI -GU28611733- Plus d'informationsQuantité requise : 40 |
||||||
3 |
GU28611633 - RAYON LONG Plus d'informationsQuantité requise : 40 |
||||||
|
4 |
GU12616101 - CONTREPOIDS 15 GR. Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
GU12616102 - CONTREPOIDS 20 GR. Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
GU12616103 - CONTREPOIDS 30 GR. Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
GU92602516 - ECROU M16X1,5 Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
GU95004217 - RONDELLE 17X27X2 Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
GU28614133 - AXE DE ROUE AV. Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
GU92630508 - ECROU Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/0/2/img/132402.jpg)
12 |
ROULEMENT (20X47X14) DE ROUE ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI -GU92204220- Plus d'informationsQuantité requise : 2 |
||||||
|
14 |
GU14615201 - ENTRETOISE Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
GU90272047 - BAGUE SEEGER 47X50,5 Plus d'informationsQuantité requise : 1 |
||||||
|
17 |
GU17616360 - ENTRETOISE Plus d'informationsQuantité requise : 1 |
