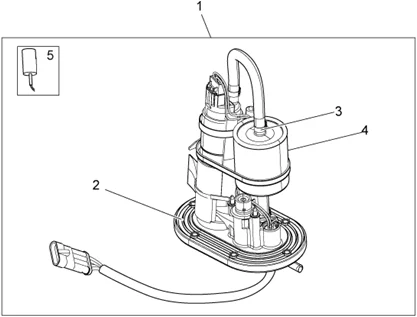

Chassis : 33.28 POMPE ESS. INTERNE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/490/Griso_SE_1200_8V_2015_33.28.PNG)
1 |
887423 - POMPA CARBURANTE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/2/9/img/73429.jpg)
2 |
JOINT DE POMPE A ESSENCE ORIGINE PIAGGIO MOTO-GUZZI BREVA, GRISO, NORGE, STELVIO -GU05107430- Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
GU01108490 - FASCETTA 11,3 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/6/img/73406.jpg)
4 |
FILTRE A ESSENCE ORIGINE PIAGGIO COMMUN A LA GAMME MOTO APRILIA ET MOTO-GUZZI -GU01106090- Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
DETECTEUR DE NIVEAU ESSENCE ORIGINE PIAGGIO MOTO-GUZZI 1200 GRISO -887790- Plus d'informationsQuantité requise : 1 |
