Eclatés de véhicule - DERBI GPR 50 R 1997-2000 EXPORT
Suspensions - roues : 12 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1116/GPR_50_R_1997-2000_EXPORT_12.png)

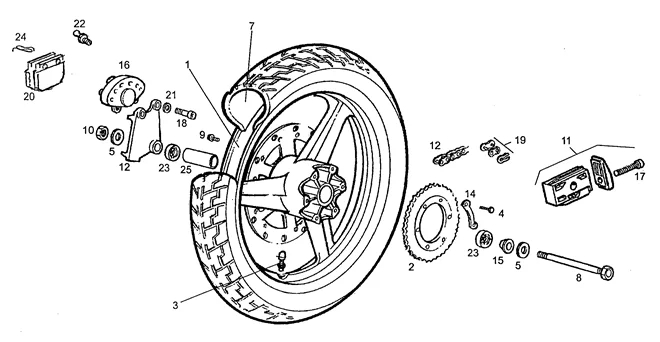

12 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1116/GPR_50_R_1997-2000_EXPORT_12.png)
![]() 1 |
00H01307351 - JANTE ARRIERE NUE. Plus d'informationsQuantité requise : 1 |
||||||
![]() 2 |
00H01312031 - COURONNE ARRI¤RE Z-52GPR-50"R" Plus d'informationsQuantité requise : 1 |
||||||
![]() 3 |
00H04701091 - ENSEMB.SOUPAPE D'ADMISS.AIR RO Plus d'informationsQuantité requise : 1 |
||||||
![]() 4 |
|
||||||
![]() 5 |
RONDELLE ROUE (DIAMETRE 15) ORIGINE PIAGGIO GILERA 50 50 SMT, RCR/DERBI 50 SENDA /APRILIA RS, RX, SX -00032015000- Plus d'informationsQuantité requise : 1 |
||||||
![]() 6 |
00H01303531 - DISQUE FREIN ARRI¤RE GPR-50"R" Plus d'informationsQuantité requise : 1 |
||||||
![]() 7 |
00H01321321 - PNEU 120 80 16 METZELER Plus d'informationsQuantité requise : 1 |
||||||
![]() 8 |
00H01302201 - S/ENSEMBLE AXE ROUE ARRI¤RE GP Plus d'informationsQuantité requise : 1 |
||||||
![]() 9 |
VIS BRIDE TH (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -018639- Plus d'informationsQuantité requise : 1 |
||||||
![]() 10 |
00H00300671 - ECRON AXE BRAS OSCILLANT - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
![]() 11 |
TENDEUR DE ROUE ARRIERE ORIGINE PIAGGIO GILERA 50 GPR 1998>2005 -00H013048116 Plus d'informationsQuantité requise : 1 |
||||||
![]() 12 |
00H01302521 - S/ENSEMBLE SUPPORT PINCE FREIN Plus d'informationsQuantité requise : 1 |
||||||
![]() 13 |
CHAINE DE TRANSMISSION 420/136 MAILLONS ORIGINE PIAGGIO APRILIA 50 SX, RX -00H01507201- Plus d'informationsQuantité requise : 1 |
||||||
![]() 14 |
BLOCAGE DE VIS COURONNE ORIGINE DERBI 50 GPR 1997>2003 -00H01304051 Plus d'informationsQuantité requise : 1 |
||||||
![]() 15 |
867494 - DOUILLE Plus d'informationsQuantité requise : 1 |
||||||
![]() 16 |
00H01103581 - ETRIER FREIN ARR. - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
![]() 17 |
VIS DE TENTION DE CHAINE (8X50) ORIGINE PIAGGIO GILERA 50 SMT RACING 2011>2012 /DERBI 50 SENDA 2003>2013 -00H01301491- Plus d'informationsQuantité requise : 1 |
||||||
![]() 18 |
00000004830 - BOULON TETE HEX.8M125X30 D933 Plus d'informationsQuantité requise : 1 |
||||||
![]() 19 |
ATTACHE RAPIDE MONTAGE CHAINE IRIS 130 MAILLONS ORIGINE PIAGGIO-00H01501212 Plus d'informationsQuantité requise : 1 |
||||||
![]() 20 |
PLAQUETTE DE FREIN ORIGINE DERBI 50 SENDA 2000>2010 /GILERA SMT 2006 /APRILIA 50 RS , RX, SX 2006>2010 (AJP) -00G04700141- Plus d'informationsQuantité requise : 1 |
||||||
![]() 21 |
RONDELLE CANNELE D8 ORIGINE PIAGGIO COMMUN A LA GAMME -00034000802 Plus d'informationsQuantité requise : 1 |
||||||
![]() 22 |
VIS DE PURGE ETRIER DE FREIN ARRIERE ORIGINE DERBI 50 SENDA 2003>2008/GILERA 50 GPR -00H04702121 Plus d'informationsQuantité requise : 1 |
||||||
![]() 23 |
ROULEMENT (15X35X11) ROUE ARRIERE ORIGINE PIAGGIO 50 GILERA SMT 2011>/DERBI SENDA 2003> -601345- Plus d'informationsQuantité requise : 1 |
||||||
![]() 24 |
RESSORT PLAQUETTE DE FREIN ORIGINE PIAGGIO 50 GILERA SMT, RCR 2006/DERBI SENDA 2000>2010/APRILIA SX, RX 2006>2010 -00H01301831- Plus d'informationsQuantité requise : 1 |
||||||
![]() 25 |
00H01303101 - S-ENS.SEPAR.COUSSINET AR.FEN-E - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
