Eclatés de véhicule - GILERA GPR 50 1998-2005
Suspensions-roues : T23 ROUE AV.-ETRIER DU FREIN

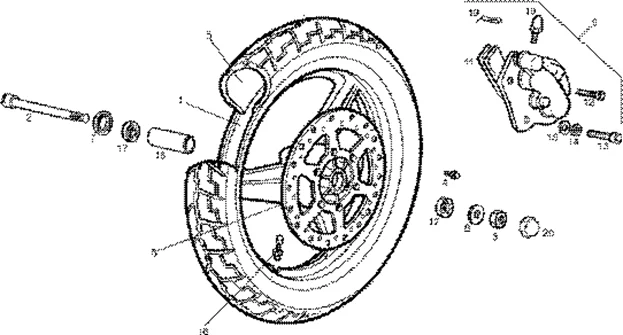

T23 ROUE AV.-ETRIER DU FREIN
![]() 1 |
JANTE AV. |
||||||
![]() 2 |
00H01200271 - AXE ROUE AVANT GPR-50"R" Plus d'informationsQuantité requise : 1 |
||||||
![]() 3 |
ECROU ROUE AVANT OU ARRIERE 50 A BOITE ORIGINE PIAGGIO GILERA 50 SMT, RCR 2011>/DERBI 50 SENDA 2003>/APRILIA RS4 2011>, 50 SX, RX 2011> -00H00300672- Plus d'informationsQuantité requise : 1 |
||||||
![]() 4 |
VIS BRIDE TH (6X20) AVEC FREIN FILET ORIGINE PIAGGIO COMMUN A LA GAMME -2B004560- Plus d'informationsQuantité requise : 1 |
||||||
![]() 4 |
VIS BRIDE TH (6X20) AVEC FREIN FILET ORIGINE PIAGGIO COMMUN A LA GAMME -2B004560- Plus d'informationsQuantité requise : 1 |
||||||
![]() 5 |
00H01214111 - PNEU ANT.90/90-16 METZELER Plus d'informationsQuantité requise : 1 |
||||||
![]() 6 |
00H01206021 - DISQUE FREIN AVANT GPR-50"R" Plus d'informationsQuantité requise : 1 |
||||||
![]() 7 |
JOINT ROUE AVANT GPR-50"R" |
||||||
![]() 8 |
RONDELLE ROUE (DIAMETRE 15) ORIGINE PIAGGIO GILERA 50 50 SMT, RCR/DERBI 50 SENDA /APRILIA RS, RX, SX -00032015000- Plus d'informationsQuantité requise : 1 |
||||||
![]() 9 |
00H01204192 - ENS.ETRIER DE FREIN Plus d'informationsQuantité requise : 1 |
||||||
![]() 10 |
VIS DE PURGE ETRIER DE FREIN ORIGINE DERBI 50 SENDA 2010</GILERA 50 SMT, RCR 2006</APRILIA 50-125 RS 2013< -864123 Plus d'informationsQuantité requise : 1 |
||||||
![]() 11 |
KIT PLAQUETTES DE FREIN DT.GPR 50R |
||||||
![]() 12 |
00000004820 - BOULON TETE HEX. 8M125X20 Plus d'informationsQuantité requise : 1 |
||||||
![]() 13 |
00000004830 - BOULON TETE HEX.8M125X30 D933 Plus d'informationsQuantité requise : 1 |
||||||
![]() 14 |
RONDELLE |
||||||
![]() 15 |
RONDELLE CANNELE D8 ORIGINE PIAGGIO COMMUN A LA GAMME -00034000802 Plus d'informationsQuantité requise : 1 |
||||||
![]() 16 |
00H04701091 - ENSEMB.SOUPAPE D'ADMISS.AIR RO Plus d'informationsQuantité requise : 1 |
||||||
![]() 17 |
ROULEMENT (15X35X11) ROUE ARRIERE ORIGINE PIAGGIO 50 GILERA SMT 2011>/DERBI SENDA 2003> -601345- Plus d'informationsQuantité requise : 1 |
||||||
![]() 18 |
ENTRETOISE |
||||||
![]() 19 |
RESSORT PLAQUETTE DE FREIN ORIGINE PIAGGIO 50 GILERA SMT, RCR 2006/DERBI SENDA 2000>2010/APRILIA SX, RX 2006>2010 -00H01301831- Plus d'informationsQuantité requise : 1 |
||||||
![]() 20 |
PROTECTEUR AXE DE ROUE AVANT ORIGINE PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2003>2017/APRILIA SX, RX, RS -00H01201331 Plus d'informationsQuantité requise : 1 |
