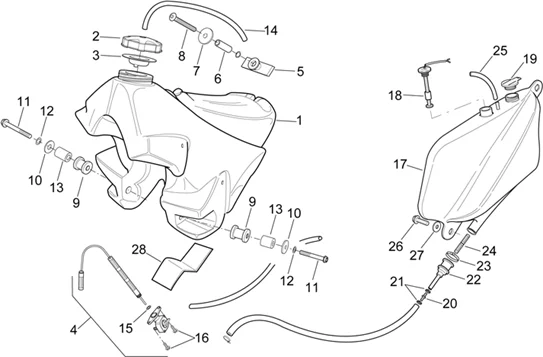

Chassis : 28.08 RESERVOIR HUILE ET CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/693/ETX_125_1998_28.08.PNG)
2 |
AP8220620 - BOUCHON Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP8120683 - JOINT Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
AP8102808 - ROBINET ESSENCE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/2/3/img/46623.jpg)
5 |
CAOUTCHOUC RESERVOIR ORIGINE PIAGGIO COMMUN A LA GAMME -AP8120663- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/4/img/71484.jpg)
6 |
ENTRETOISE (8X12X26) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8121773- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/0/img/71810.jpg)
7 |
RONDELLE PLATE (8.5X24X2) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150018- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/7/2/img/50972.JPG)
8 |
VIS BTR TETE BOMBEE (8X35) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152230- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/2/img/71412.jpg)
9 |
CAOUTCHOUC EN T ORIGINE PIAGGIO COMMUN A LA GAMME -AP8120675- Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/2/3/img/50823.jpg)
10 |
RONDELLE PLATE (6,6X18X1,6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150016- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/6/img/71946.jpg)
11 |
VIS BRIDE TH (6X45) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152284- Plus d'informationsQuantité requise : 2 |
||||||
|
12 |
AP8150182 - RONDELLE ELASTIQUE COURBE Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/7/img/46927.jpg)
13 |
DOUILLE ENTRETOISE (6X10X16) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8121718- Plus d'informationsQuantité requise : 4 |
||||||
|
14 |
896570 - TUYAU Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/3/9/img/46639.jpg)
15 |
JOINT TORIQUE ORIGINE PIAGGIO COMMUN A LA GAMME -AP8120769- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
16 |
VIS BRIDE TH (6X12) ORIGINE PIAGGIO COMUUN A LA GAMME -AP8152277- Plus d'informationsQuantité requise : 2 |
||||||
|
17 |
AP8139113 - RESERVOIR HUILE Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
AP8124547 - INDICATEUR RESERVE HUILE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/8/2/img/56882.jpg)
19 |
BOUCHON RESERVOIR HUILE ORIGINE PIAGGIO APRILIA COMMUN A LA GAMME SCOOTER 50 CC -AP8220421- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/6/img/71166.jpg)
20 |
RACCORD ESSENCE A DEUX VOIES ORIGINE PIAGGIO COMMUN A LA GAMME -AP8101944- Plus d'informationsQuantité requise : 1 |
||||||
|
21 |
AP8101770 - COLLIER CLIC Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/4/2/img/45142.jpg)
22 |
CAOUTCHOUC/RACCORD CANALISATION HUILE ORIGINE PIAGGIO COMMUN A LA GAMME APRILIA 50-125 -AP8102223- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/0/7/img/45107.jpg)
23 |
COLLIER CLIC (23,5X8) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8101743- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/0/img/71170.jpg)
24 |
FILTRE DE RESERVOIR D'HUILE ORIGINE PIAGGIO COMMUN A LA GAMME APRILIA 50-125 CC -AP8102224- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/1/9/img/65919.jpg)
25 |
TUYAU/DURITE ESSENCE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME (ROULEAU DE 5M) -1R000160- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
26 |
VIS BRIDE TH (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152279- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/4/img/71834.jpg)
27 |
RONDELLE PLATE (6,6X18X1,6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150179- Plus d'informationsQuantité requise : 2 |
