Eclatés de véhicule - MOTO GUZZI ELDORADO 1400 MY15
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

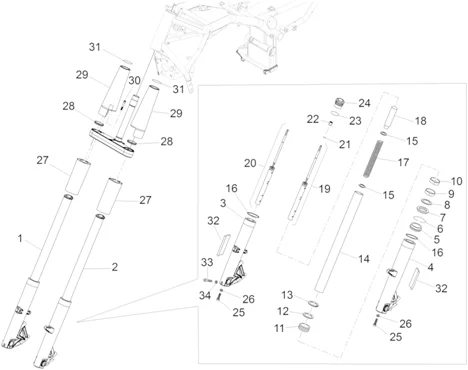

Suspensions : 04.025 FOURCHE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/488/Eldorado_1400_MY15_04.025.PNG)
1 |
887512 - STELO DX FORCELLA Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
2B000383 - TIGE GAUCHE Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
887829 - GAMBALE DX FORCELLA Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
887830 - GAMBALE SX FORCELLA Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
B064059 - (*)PARAPOLVERE * Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
B064060 - (*)ANELLO SEEGER * Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/2/4/7/img/101247.JPG)
7 |
JOINT SPI DE FOURCHE SACHS ORIGINE PIAGGIO 1400 CALIFORNIA 2012>, ELDORADO 2015> MOTO GUZZI -B064065- Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
B064064 - (*)ANELLO * Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
B064062 - (*)BUSSOLA GUIDA * Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
B064063 - (*)BUSSOLA SCORRIMENTO * Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
B064068 - (*)TAMPONE MECCANICO * Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
B064066 - (*)DISTANZIALE TAMPONAMENTO * Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
B064067 - (*)ANELLO SEEGER * Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
B064049 - (*)STELO * Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
B064058 - (*)ROSETTA * Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
B064102 - ANELLO ELASTICO Plus d'informationsQuantité requise : 2 |
||||||
|
17 |
B064050 - (*)MOLLA * Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
B064053 - (*)TUBO PRECARICA * Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
B064055 - (*)POMPANTE SX CPL * Plus d'informationsQuantité requise : 1 |
||||||
|
20 |
B064056 - (*)POMPANTE DX CPL * Plus d'informationsQuantité requise : 1 |
||||||
|
21 |
B064061 - (*)ANELLO OR * Plus d'informationsQuantité requise : 1 |
||||||
|
22 |
B064052 - (*)DADO * Plus d'informationsQuantité requise : 1 |
||||||
|
23 |
B064057 - (*)ANELLO OR * Plus d'informationsQuantité requise : 1 |
||||||
|
24 |
B064051 - (*)TAPPO STELO * Plus d'informationsQuantité requise : 1 |
||||||
|
25 |
B064069 - (*)VITE * Plus d'informationsQuantité requise : 1 |
||||||
|
26 |
B064070 - RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
|
27 |
887360 - ASS. CANNOCCHIALE INFERIORE Plus d'informationsQuantité requise : 2 |
||||||
|
28 |
887586 - DISTANZIALE DI CENTRAGGIO Plus d'informationsQuantité requise : 2 |
||||||
|
29 |
887359 - ASS. CANNOCCHIALE SUPERIORE Plus d'informationsQuantité requise : 2 |
||||||
|
30 |
GU98690245 - VITE TCEI IX M5X45 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/4/4/img/132244.jpg)
31 |
GU90706461 - JOINT TORIQUE 46,04X3,53 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/4/img/73444.JPG)
32 |
CATADIOPTRE AMBRE DE FOURCHE ORIGINE APRILIA/MOTO GUZZI COMMUN A LA GAMME -GU05781630- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/6/1/img/133161.jpg)
33 |
VIS BTR (8X45) ORIGINE PIAGGIO COMMUN A LA GAMME -GU98680445- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/6/6/img/132666.JPG)
34 |
RONDELLE PLATE (8,4X14,57X1,6) ORIGINE PIAGGIO COMMUN A LA GAMME -GU95005308- Plus d'informationsQuantité requise : 1 |
