Eclatés de véhicule - GILERA EAGLET 50 Automatic 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

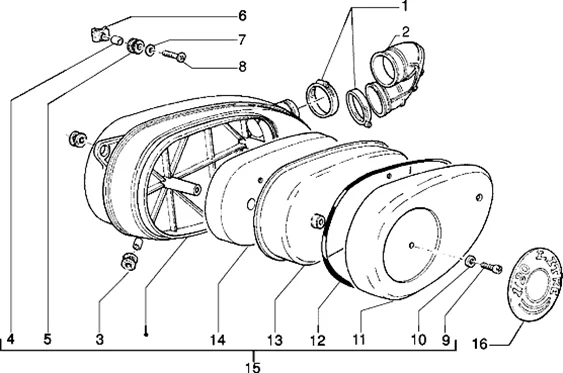

Moteur : T23 BOITE FILTRE A AIRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/672/Eaglet_Automatic_1998-2005_T23.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
1 |
COLLIER DE SERRAGE NYLON TYPE RILSAN 4,8X270MM ORIGINE PIAGGIO COMMUN A LA GAMME -257134- Plus d'informationsQuantité requise : 2 |
||||||
3 |
257301 - TAMPON Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/9/img/66019.jpg)
4 |
DOUILLE ENTRETOISE (7X10X10) ORIGINE PIAGGIO COMMUN A LA GAMME -257302- Plus d'informationsQuantité requise : 2 |
||||||
|
5 |
939278 - TAMPON Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
6 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/3/img/65793.jpg)
7 |
RONDELLE PLATE (6.5X18.4) ORIGINE PIAGGIO COMMUN A LA GAMME -179575- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/2/img/65392.jpg)
8 |
VIS CRUCIFORME (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -015759- Plus d'informationsQuantité requise : 2 |
||||||
|
14 |
432561 - ELEMENT Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
463615 - PLAQUE DECORATIVE Plus d'informationsQuantité requise : 2 |
