Eclatés de véhicule - MOTO GUZZI DAYTONA 1000 Daytona RS 1000 1997-1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

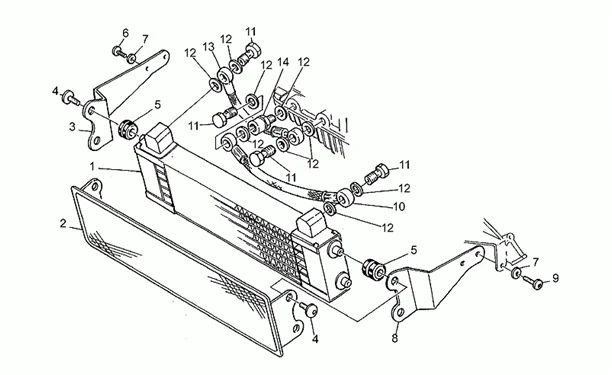

Chassis : 33.42 RADIATEUR HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/487/Daytona_RS_1000_1997-1998_33.42.PNG)
1 |
GU01162000 - RADIATORE OLIO Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
GU02582601 - PROTEZIONE RADIATORE Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
GU01164200 - BRIDE DROITE Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
GU98230616 - VIS Plus d'informationsQuantité requise : 4 |
||||||
|
5 |
GU91551132 - CAOUTCHOUC Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/0/5/7/img/133057.jpg)
6 |
VIS BTR TETE BOMBEE (6X14) ORIGINE PIAGGIO COMMUN A LA GAMME -GU98370614- Plus d'informationsQuantité requise : 3 |
||||||
|
7 |
GU95000206 - RONDELLE Plus d'informationsQuantité requise : 4 |
||||||
|
8 |
GU01164400 - BRIDE GAUCHE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/6/1/img/68461.jpg)
9 |
VIS BTR TETE BOMBEE (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -672380- Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
GU01161602 - TUYAU Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
GU01161700 - VITE TUBO OLIO Plus d'informationsQuantité requise : 4 |
||||||
|
12 |
GU10154200 - JOINT Plus d'informationsQuantité requise : 9 |
||||||
|
13 |
GU01162302 - TUBE RETOUR HUILE Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
GU01162500 - RACCORDO Plus d'informationsQuantité requise : 1 |
