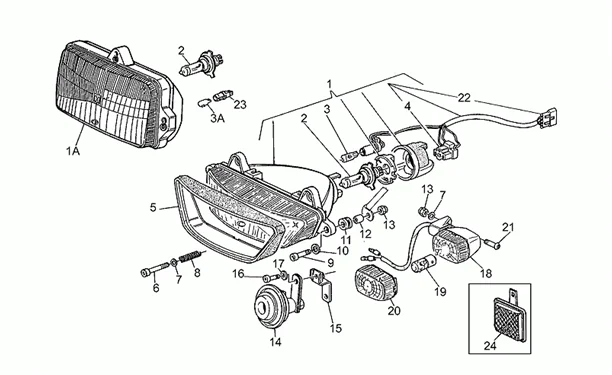

Chassis : 33.05 PHARE AVANT-KLAXON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/485/Daytona_1000_1992-1995_33.05.PNG)
1 |
Feu avant |
||||||
|
1 |
PROJECTEUR |
||||||
|
1 |
GU30740520 - FEU AVANT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/6/img/66256.jpg)
2 |
AMPOULE/LAMPE 12V 60/55W H4 ORIGINE PIAGGIO COMMUN A LA GAMME -292723 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/9/img/66269.jpg)
3 |
AMPOULE/LAMPE 12V 3W W2,1X9,5D ORIGINE PIAGGIO COMMUN A LA GAMME -294131 Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
|
||||||
|
4 |
GU14756255 - CONNECTEUR Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
Cadre phare |
||||||
|
6 |
GU98610335 - VIS TCEI M6X18 Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
GU95000206 - RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
|
||||||
|
9 |
GU98622325 - VIS M6X25 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
10 |
RONDELLE PLATE (6,15X11X0,8) ORIGINE PIAGGIO COMMUN A LA GAMME -GU95008206- Plus d'informationsQuantité requise : 2 |
||||||
|
11 |
GU91551080 - CAOUTCHOUC Plus d'informationsQuantité requise : 2 |
||||||
|
12 |
GU91180709 - ENTRETOISE Plus d'informationsQuantité requise : 2 |
||||||
|
13 |
GU92630106 - ECROU M6X1 Plus d'informationsQuantité requise : 4 |
||||||
|
14 |
Klaxon |
||||||
|
15 |
SUPPORT SIRENE |
||||||
|
16 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
17 |
RONDELLE (8,4X13X0,8) ORIGINE PIAGGIO COMMUN A LA GAMME -GU14615901- Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
GU30750601 - CLIGNOTANT ARRIERE GOUCHE Plus d'informationsQuantité requise : 2 |
||||||
|
19 |
GU93450127 - LAMPE (OU AMPOULE) 12V-10W Plus d'informationsQuantité requise : 2 |
||||||
|
20 |
GU30753700 - VITRE CLIGNOTANT Plus d'informationsQuantité requise : 2 |
||||||
|
20 |
GU30753701 - VITRE CLIGNOTANT Plus d'informationsQuantité requise : 2 |
||||||
|
21 |
GU98230620 - VIS Plus d'informationsQuantité requise : 2 |
||||||
|
22 |
GU17756160 - CONNECTEUR Plus d'informationsQuantité requise : 1 |
||||||
|
23 |
GU95100123 - RONDELLE Plus d'informationsQuantité requise : 4 |
||||||
|
23 |
|
||||||
|
24 |
GU14781670 - CATADIOPTRE, AMBRE Plus d'informationsQuantité requise : 2 |
