Eclatés de véhicule - APRILIA CLIMBER 280 1990-1994
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

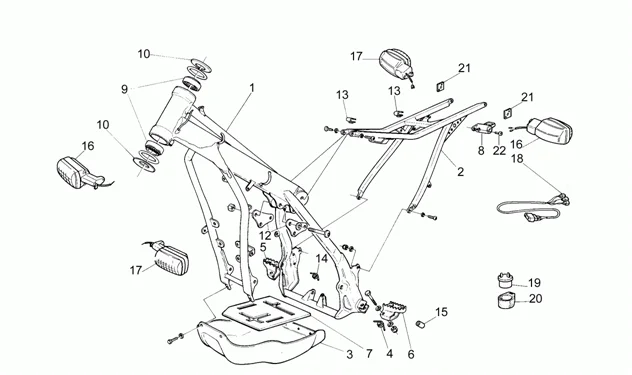

Chassis : 16 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/289/Climber_280_1990-1994_16.PNG)
1 |
CHASSIS (PL) |
||||||
|
1 |
CADRE CLIMBER VERNI (PL) |
||||||
|
1 |
CADRE *8135455 |
||||||
|
2 |
BOUCLE AR DE CADRE |
||||||
|
2 |
CACHE AR |
||||||
|
2 |
CADRE SELLE ANOD*8135457 |
||||||
|
3 |
SABOT |
||||||
|
4 |
RESSORT RETOUR PL |
||||||
|
5 |
REPOSE PIED=8132951 |
||||||
|
6 |
REPOSE PIED PILOTE G. |
||||||
|
7 |
TAMPON CARTER |
||||||
|
8 |
AP8104808 - SERRATURA CASCO Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
Roulement conique |
||||||
|
10 |
RONDELLE |
||||||
|
12 |
PLAQUE SUPPORT MOTEUR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
13 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485- Plus d'informationsQuantité requise : 2 |
||||||
|
14 |
RESSORT RETOUR PED/G. |
||||||
|
15 |
ENTRETOISE |
||||||
|
16 |
CLIGNOTANT AVANT DR. |
||||||
|
17 |
CLIGNOTANT AV.G./AR.DR. |
||||||
|
18 |
CABLE CLIGNOTANT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/3/img/71563.jpg)
19 |
CENTRALE CLIGNOTANTE ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER ET MAXISCOOTER APRILIA ET MOTO 125 CC -AP8124235 Plus d'informationsQuantité requise : 1 |
||||||
|
20 |
AP8212165 - SUPPORT BUZZER Plus d'informationsQuantité requise : 1 |
||||||
|
21 |
PLAQUE |
||||||
|
22 |
Vis à arrachement |
