Eclatés de véhicule - MOTO GUZZI CALIFORNIA 1100 California Stone Touring PI Cat 1100 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

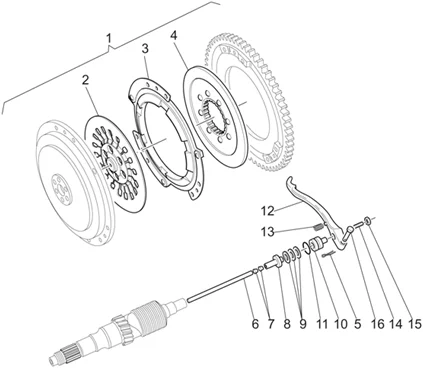

Moteur : 34.11 EMBRAYAGE MONODISQUE SERIE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/483/California_Stone_Touring_PI_Cat_1100_2003-2004_34.11.PNG)
2 |
GU03084055 - MOLLA A TAZZA Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
GU01084440 - DISQUE EMBRAYAGE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/6/4/img/132764.JPG)
5 |
GOUPILLE ORIGINE MOTO GUZZI COMMUN A LA GAMME -GU95500222- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/9/5/img/129195.jpg)
6 |
TIGE EMBRAYAGE ORIGINE PIAGGIO MOTO-GUZZI 1000 LE-MANS, STRADA, V10, DAYTONA, 1100 CALIFORNIA, SPORT -GU14085700 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/9/6/img/129196.jpg)
7 |
DOUILLE EMBRAYAGE ORIGINE MOTO-GUZZI COMMUN A LA GAMME -GU14085900- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/1/0/7/img/125107.jpg)
8 |
CORPS INTERIEUR DE TIGE EMBRAYAGE ORIGINE PIAGGIO MOTO-GUZZI 1100-1200 SPORT, BREVA, GRISO, 940 BELLAGIO, 750 V7, BREVA, NEVADA, 1100 CALIFORNIA, 1000 V10, 1200 STELVIO -GU14086000- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/0/1/7/img/98017.jpg)
9 |
PALLIER DE POUSSEE D'EMBRAYAGE ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI -2A000376- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/9/7/img/129197.jpg)
10 |
CORPS EXTERIEUR DE TIGE EMBRAYAGE ORIGINE PIAGGIO MOTO-GUZZI 1100-1200 SPORT, BREVA, GRISO, 940 BELLAGIO, 750 V7, BREVA, NEVADA, 1100 CALIFORNIA, 1000 V10, 1200 STELVIO -GU14086100- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/0/img/132220.jpg)
11 |
JOINT TORIQUE (17,13X2,62) ORIGINE PIAGGIO COMMUN A LA GAMME -GU90706170- Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
GU14090202 - DEBRAYAGE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/4/4/img/132644.jpg)
13 |
RESSORT RETOUR LEVIER DEMARRAGE ORIGINE PIAGGIO COMMUN A LA GAMME MOTO GUZZI -GU94321105- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/0/0/img/129200.jpg)
14 |
VIS DE LEVIER DE COMMANDE EMBRAYAGE ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI -GU14090400- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/9/1/img/132491.jpg)
15 |
ECROU (M8) ORIGINE PIAGGIO COMMU A LA GAMME - GU92606508- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/8/0/6/img/127806.jpg)
16 |
GOUPILLE DE FOURCHETTE EMBRAYAGE ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI -2A000384- Plus d'informationsQuantité requise : 1 |
