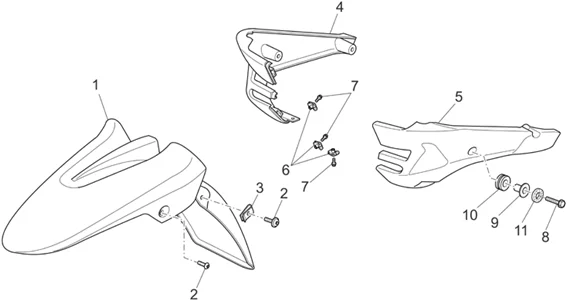

Chassis : 33.15 GARDE BOUE AV-EMBAS.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/468/Breva_V_IE_1100_2005-2007_33.15.PNG)
1 |
977556 - PARAF ANT ARANCIO BASTARDO Plus d'informationsQuantité requise : 1 |
|||||||||
|
1 |
GU05434330 - GARDE-BOUE AV.BRUT Plus d'informationsQuantité requise : 1 |
|||||||||
|
1 |
GU05434330BM - PARAF ANT BIANCO DIAMANTE * Plus d'informationsQuantité requise : 1 |
|||||||||
|
1 |
GU05434331 - GARDE-BOUE AV ROUGE Plus d'informationsQuantité requise : 1 |
|||||||||
|
1 |
GARDE BOUE AVANT NOIR ORIGINE PIAGGIO MOTO-GUZZI 850-1100 BREVA, 1200 SPORT -GU05434332 Plus d'informationsQuantité requise : 1 |
|||||||||
|
1 |
GU05434333 - GARDE-BOUE AV.GRIS Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/1/img/71961.jpg)
2 |
VIS BTR DE CARENAGE (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152302 Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
2 |
VIS BTR DE CARENAGE (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -2B014101 Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
3 |
ECROU TOLE (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8102375 Plus d'informationsQuantité requise : 2 |
|||||||||
|
4 |
GU05570530 - BUTEE CARENAGE DTE Plus d'informationsQuantité requise : 1 |
|||||||||
|
5 |
GU05570630 - BUTEE CARENAGE GC * Plus d'informationsQuantité requise : 1 |
|||||||||
|
6 |
ECROU TOLE (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8102375 Plus d'informationsQuantité requise : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
7 |
VIS BTR TETE BOMBEE (5X9) ORIGINE PIAGGIO COMMUN A LA GAMME MOTO -AP8152339 Plus d'informationsQuantité requise : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/9/img/71949.jpg)
8 |
VIS BRIDE TH (8X25) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152287 Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/7/img/72297.jpg)
9 |
DOUILLE EN T (8,5X10,7X12) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8221128 Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/7/img/71407.jpg)
10 |
CAOUTCHOUC SILENTBLOC ORIGINE PIAGGIO COMMUN A LA GAMME -AP8120594 Plus d'informationsQuantité requise : 4 |
|||||||||
|
11 |
GU95008308 - RONDELLE Plus d'informationsQuantité requise : 4 |
|||||||||
