Eclatés de véhicule - MOTO GUZZI BREVA 1200 2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

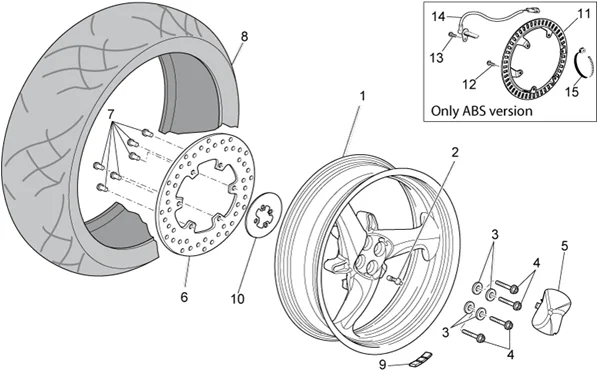

Chassis : 33.31 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/464/Breva_1200_2007_33.31.PNG)
1 |
977268 - RUOTA POST NORGE NUDA 5,50X17 GRIGIO CHI Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
977339 - RUOTA POST NUDA 5,50X17 GRIGIA Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/2/1/0/img/128210.jpg)
2 |
VALVE TUBELESS ORIGINE MOTO GUZZI COMMUN A LA GAMME -GU03617710- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/8/5/9/img/128859.jpg)
3 |
DOUILLE CONIQUE ORIGINE MOTO GUZZI 1200 GRISO, NORGE, STELVIO -GU05632730- Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/8/4/2/img/132842.jpg)
4 |
VIS FIXATION DE ROUE (12X65) ORIGINE PIAGGIO MOTO-GUZZI BELLAGIO, BREVA, STELVIO, GRISO, NORGE -GU97202665- Plus d'informationsQuantité requise : 4 |
||||||
|
5 |
977340 - COPERCHIO RUOTA POST NORGE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/3/1/3/img/98313.jpg)
6 |
DISQUE DE FREIN ARRIERE ORIGINE PIAGGIO MOTO-GUZZI 1100-1200 BREVA 2005>, GRISO 2005>, 1200 NORGE 2006>, SPORT 2006>, STELVIO 2008>, 940 BELLAGIO 2007>2013 -85227R- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/8/6/8/img/130868.jpg)
7 |
VIS BTR (8X25) FIXATION DISQUE DE FREIN ARRIERE ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI -GU30611460- Plus d'informationsQuantité requise : 6 |
||||||
|
9 |
GU14616150 - CONTREPOIDS Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
977056 - PARAPOLVERE RUOTA POST Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/8/8/1/img/128881.jpg)
11 |
ROUE PHONIQUE ARRIERE ABS ORIGINE PIAGGIO MOTO-GUZZI 1200 BREVA, STELVIO, NORGE -GU05681530- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
12 |
VIS BRIDE TH (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152272- Plus d'informationsQuantité requise : 6 |
||||||
|
13 |
CAPTEUR ABS ARRIERE ORIGINE MOTO GUZZI 1200 SPORT 2006>2013/1200 BREVA 2005>2007/ 1200 NORGE 2088>2016 /1200 STELVIO 2009>2017 -GU05683730- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
14 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152278- Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
GU49609601 - COLLIER 2,4X92 Plus d'informationsQuantité requise : 1 |
