Eclatés de véhicule - DERBI BOULEVARD 200 Boulevard 200 E3 2005-2006 (EMEA)

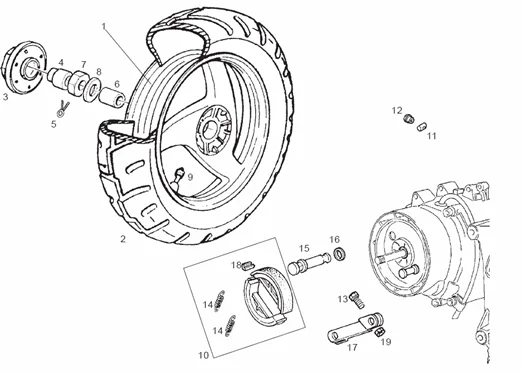

Vues éclatées : 9 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1140/Boulevard_200_E3_2005-2006_(EMEA)_9.png)
9 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1140/Boulevard_200_E3_2005-2006_(EMEA)_9.png)
![]() 1 |
00G01311351 - R-S.ENS.JANTE ARRIERE Plus d'informationsQuantité requise : 1 |
||||||
![]() 2 |
00G01211111 - PNEU - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
![]() 3 |
00G01301161 - COUVERCLE Plus d'informationsQuantité requise : 1 |
||||||
![]() 4 |
CAGE FIXATION ECROU DE ROUE ARRIERE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME SCOOTER ET MAXISCOOTER -1C004746- Plus d'informationsQuantité requise : 1 |
||||||
![]() 4 |
CAGE FIXATION ECROU DE ROUE ARRIERE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME SCOOTER ET MAXISCOOTER -1C004746- Plus d'informationsQuantité requise : 1 |
||||||
![]() 5 |
|
||||||
![]() 6 |
ENTRETOISE ORIGINE PIAGGIO COMMUN A LA GAMME -601205 Plus d'informationsQuantité requise : 1 |
||||||
![]() 7 |
|
||||||
![]() 8 |
00G01303191 - RONDELLE AXE ROUE AR. .ALEM - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
![]() 9 |
VALVE TUBELESS ORIGINE PIAGGIO COMMUN A LA GAMME -270991 Plus d'informationsQuantité requise : 1 |
||||||
![]() 10 |
MACHOIRES DE FREIN ARRIERE ORIGINE PIAGGIO 125 FLY, LIBERTY, X8 STREET, VESPA PRIMAVERA, VESPA SPRINT/APRILIA 125 MOJITO, SPORT-CITY (JEU) -56294R5 Plus d'informationsQuantité requise : 1 |
||||||
![]() 11 |
00G01100111 - PIVOT - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
![]() 12 |
00G01100121 - PAPILLON REGLAGE FREIN - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
![]() 13 |
VIS BRIDE TH (6X35) ORIGINE PIAGGIO COMMUN A LA GAMME -414838 Plus d'informationsQuantité requise : 1 |
||||||
![]() 14 |
RESSORT MACHOIRE DE FREIN ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50-125 -647384- Plus d'informationsQuantité requise : 1 |
||||||
![]() 15 |
B0164755 - COMPLETE BRAKE LEVER AXLE Plus d'informationsQuantité requise : 1 |
||||||
![]() 16 |
564134 - O-RING Plus d'informationsQuantité requise : 1 |
||||||
![]() 17 |
564215 - LEVIER DU FREIN Plus d'informationsQuantité requise : 1 |
||||||
![]() 18 |
266724 - PLAQUE Plus d'informationsQuantité requise : 1 |
||||||
![]() 19 |
ECROU CARRE (D6) ORIGINE PIAGGIO COMMUN A LA GAMME -828862 Plus d'informationsQuantité requise : 1 |
