Eclatés de véhicule - DERBI ATLANTIS 50 ATLANTIS O2 DERBI 1999-2000 EXPORT

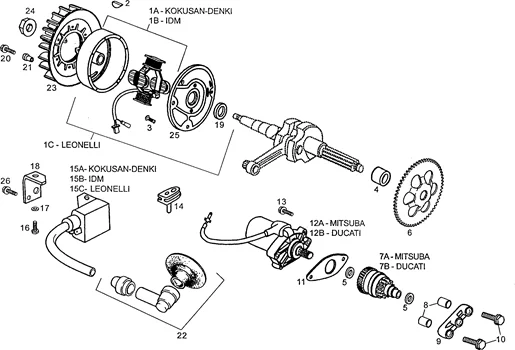

Moteur : 18 VOLANT MAGNÉTIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1130/ATLANTIS_O2_DERBI_1999-2000_EXPORT_18.png)
18 VOLANT MAGNÉTIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1130/ATLANTIS_O2_DERBI_1999-2000_EXPORT_18.png)
![]() 1 |
00G03301801 - ENSEMBLE VOLANT ELECTR.VAMOS-K Plus d'informationsQuantité requise : 1 |
||||||
![]() 2 |
00G03300231 - CLAVETTE VOLANT ELECTRONIQUE Plus d'informationsQuantité requise : 1 |
||||||
![]() 3 |
|
||||||
![]() 4 |
00G03901781 - ENTRETOISE - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
![]() 5 |
ENTRETOISE DE PEDALE DE FREIN ORIGINE PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA /APRILIA 50 SX, RX -00005527540- Plus d'informationsQuantité requise : 1 |
||||||
![]() 6 |
00G03901051 - RECHANGE-COURONNE DEMARRAGE Plus d'informationsQuantité requise : 1 |
||||||
![]() 7 |
00G03901851 - ENS.PIGNONS DEMARREUR EL Plus d'informationsQuantité requise : 1 |
||||||
![]() 7 |
00G03904851 - ENS.PIGNONS DEMARREUR EL.VAMOS - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
![]() 8 |
00G03001021 - CENTREUR CARTERS - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
![]() 9 |
00G03901871 - S-ENS.PLATINE APPUI DEMARREUR Plus d'informationsQuantité requise : 1 |
||||||
![]() 10 |
VIS BRIDE TH (6X30) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152281- Plus d'informationsQuantité requise : 1 |
||||||
![]() 11 |
00G03900501 - JOINT PLATINE APPUI MOTEUR - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
![]() 12 |
00G03901891 - ENS.DEMARREUR ELECTR. - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
![]() 12 |
00G03904891 - ENS.DEMARREUR ELECTR. VAMOS-K - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
![]() 13 |
VIS BRIDE TH (6X25) ORIGINE PIAGGIO COMMUN A LA GAMME/KICK DERBI 50 SENDA -B016774 Plus d'informationsQuantité requise : 1 |
||||||
![]() 14 |
00G03300281 - PASSE-CABLES VOLANT ELECT.VAM- - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
![]() 15 |
00G03308171 - ENS.CONVERTISSEUR ELECTR.VAMOS Plus d'informationsQuantité requise : 1 |
||||||
![]() 16 |
00000004612 - VIS A TETE ALLEN 6M100X12. Plus d'informationsQuantité requise : 1 |
||||||
![]() 17 |
BOULON S03105900 |
||||||
![]() 18 |
00G04401241 - SUPPORT CONVERTIS.ELECTR. - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
![]() 19 |
00G03300751 - JOINT VOLANT ELECT.BA.18,9X30X Plus d'informationsQuantité requise : 1 |
||||||
![]() 20 |
00G03600991 - BOULON SERRAGE TURBINE H.(6X16 Plus d'informationsQuantité requise : 1 |
||||||
![]() 21 |
00G03601871 - DOUILLE DE SERRAGE TURBINE Plus d'informationsQuantité requise : 1 |
||||||
![]() 22 |
00G03300831 - PIPE DE BOUGIE - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
![]() 23 |
00G03601511 - ENSEMBLE TURBINE - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
![]() 24 |
|
||||||
![]() 25 |
00G03300021 - SUPPORT BOBINE Plus d'informationsQuantité requise : 1 |
||||||
![]() 26 |
|
