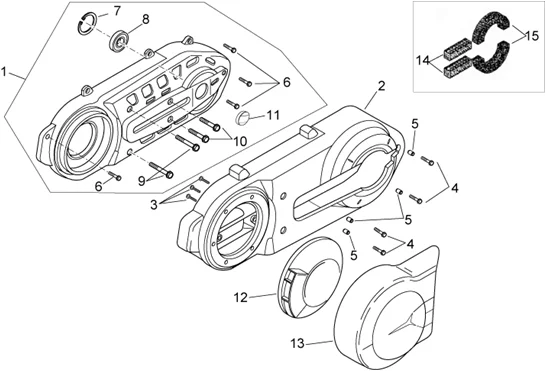

Moteur : 29.47 MOTEUR PLASTIQUES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/242/Atlantic_500_Sprint_2005-2008_29.47.PNG)
2 |
873492 - COUVERCLE * Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/5/9/img/66559.jpg)
3 |
VIS CRUCIFORME (4X30) TARAUD ORIGINE PIAGGIO COMMUN A LA GAMME -478533- Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
4 |
VIS BRIDE TH (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152279- Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/0/img/71390.JPG)
5 |
ENTRETOISE ORIGINE PIAGGIO COMMUN A LA GAMME -AP8120253- Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/1/6/img/151716.JPG)
6 |
VIS BRIDE TH (6X40) ORIGINE PIAGGIO COMMUN A LA GAMME -1A011120- Plus d'informationsQuantité requise : 7 |
||||||
|
6 |
VIS BRIDE TH (6X40) ORIGINE PIAGGIO COMMUN A LA GAMME -1A011120- Plus d'informationsQuantité requise : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/5/9/img/68559.jpg)
7 |
CLIPS/CIRCLIPS (35.7X43.5X1.75) ORIGINE PIAGGIO COMMUN A LA GAMME -825667-- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/3/8/img/69138.jpg)
8 |
ROULEMENT (17X40X12) COUVERCLE TRANSMISSION ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 350-400-500 -840277- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/1/6/img/72716.jpg)
9 |
VIS BRIDE TH (8X70) ORIGINE PIAGGIO COMMUN A LA GAMME -B016766- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/7/7/img/69077.jpg)
10 |
VIS BRIDE TH (8X100) ORIGINE PIAGGIO COMMUN A LA GAMME -833664- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/4/4/img/69144.jpg)
11 |
COUVERCLE ROND DE CARTER DE TRANSMISSION ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 400-500 -840439- Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
AP8179159 - COPERCHIO ANTERIORE VARIATORE Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
AP8179158 - COPERCHIO RAFFREDD.VARIATORE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/5/8/img/69058.jpg)
14 |
MOUSSE INSONORISANTE CARTER DE TRANSMISSION ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 400-500 -833320- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/5/9/img/69059.jpg)
15 |
MOUSSE INSONORISANTE CARTER DE TRANSMISSION ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 400-500 -833321- Plus d'informationsQuantité requise : 2 |
