Eclatés de véhicule - APRILIA AREA 51 50 1998-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

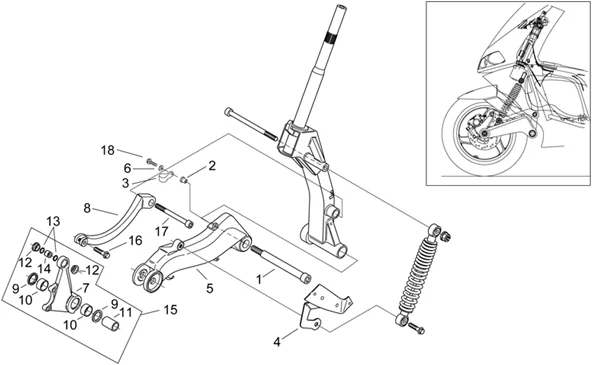

Chassis : 28.05 SUSPENSION AVANT I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/237/Area_51_1998-2000_28.05.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/2/img/71432.jpg)
2 |
DOUILLE EN T (6.1X10X5.5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8121075- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/2/1/4/img/45214.jpg)
3 |
COLLIER DE TUYAU HUILE ORIGINE PIAGGIO APRILIA 1000 RSV-2, TUONO, FUTURA, FALCO, CAPONORD -AP8102731- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/6/img/71806.jpg)
6 |
RONDELLE PLATE (5.5X15X1.6) ORIGINE PIAGGIO COMMU A LA GAMME -AP8150013- Plus d'informationsQuantité requise : 1 |
||||||
7 |
AP8203869 - ATTACHE PINCE FREIN CPL. Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
AP8203831 - DOUILLE CEMENTEE Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
AP8203869 - ATTACHE PINCE FREIN CPL. Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/1/img/71951.jpg)
16 |
VIS BRIDE TH (8X35) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152289- Plus d'informationsQuantité requise : 1 |
||||||
|
17 |
AP8150092 - VIS Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/9/7/img/69697.jpg)
18 |
VIS BRIDE TH (5X0,8 L.28) ORIGINE PIAGGIO COMMUN A LA GAMME -855799- Plus d'informationsQuantité requise : 1 |
