Eclatés de véhicule - APRILIA AMICO 50 Amico LX Sport 1992-1993
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

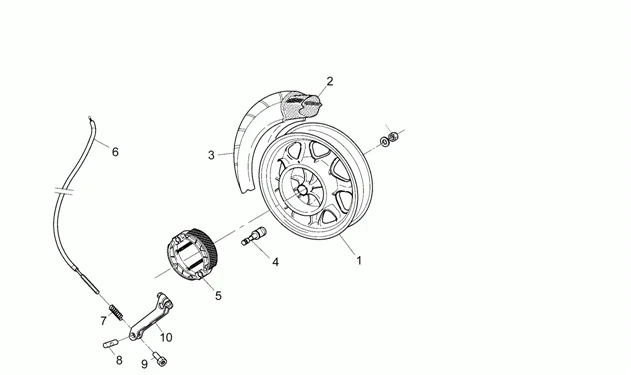

Chassis : 15 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/236/Amico_LX_Sport_1992-1993_15.PNG)
5 |
AP8213133 - SABOTS A RESS-PAIRE Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
AP8214104 - CABLE FREIN ARRIERE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/3/8/8/img/56388.jpg)
7 |
RESSORT DE TRANSMISSION FREIN ARRIERE ORIGINE PIAGGIO COMMUN A LA GAMME -AP8213137- Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
AP8101103 - REGLAGE LEVIER FREIN ARRIERE Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
AP8232678 - LEVIER FREIN AR BR.GALVA Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/9/4/img/97094.jpg)
11 |
ECROU BRIDE (14X1.5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152244- Plus d'informationsQuantité requise : 1 |
