Eclatés de véhicule - MOTO GUZZI 65 GT 650 1987-1989
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

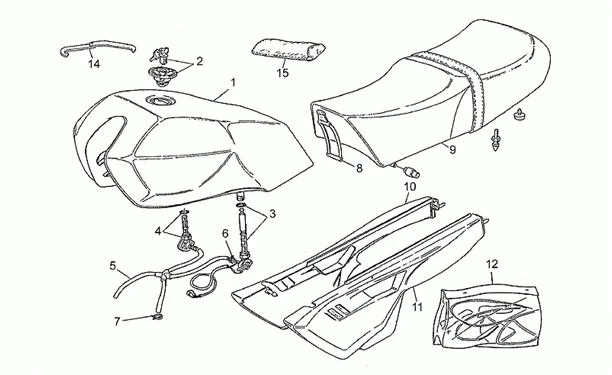

Chassis : 33.02 CARROSSERIE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/459/65_GT_650_1987-1989_33.02.PNG)
1 |
GU231002301 - RESERVOIR Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
GU62103920 - BOUCHON RESERVOIR Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
GU23105370 - ROBINET Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/4/7/2/1/img/124721.jpg)
4 |
ROBINET ESSENCE ORIGINE PIAGGIO MOTO-GUZZI 1100 CALIFORNIA -GU23105470- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/3/img/72893.jpg)
6 |
COLLIER POUR TUYAU DE 13MM ORIGINE PIAGGIO COMMUN A LA GAMME -CM002907- Plus d'informationsQuantité requise : 2 |
||||||
|
7 |
GU61108500 - COLLIER D9 Plus d'informationsQuantité requise : 2 |
||||||
|
8 |
GU19102750 - TIRANT Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
GU275704861 - COUVERCLE BATTERIE Plus d'informationsQuantité requise : 1 |
