Eclatés de véhicule - VESPA VESPA PRIMAVERA 50 Vespa Primavera Elettrica 45 Km-h 2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

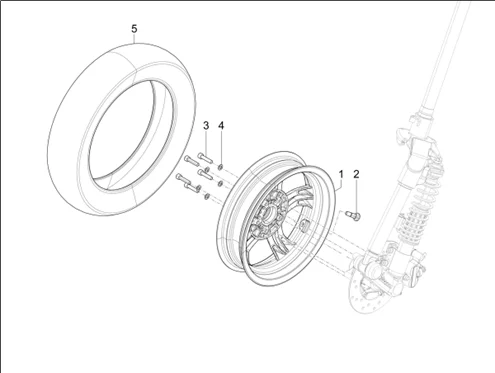

Suspensions - roues : 04.06 ROUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1258/Vespa_Primavera_Elettrica_45_Km-h_2023_(EMEA)_04.06.png)
1 |
1C007054R00G25 - ROUE AVANT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/5/0/img/67350.jpg)
2 |
VALVE TUBELESS ORIGINE PIAGGIO COMMUN A LA GAMME -597679 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/7/1/img/67371.jpg)
3 |
VIS BTR (8X35) FIXATION ETRIER DE FREIN ORIGINE PIAGGIO COMMUN A LA GAMME -598921 Plus d'informationsQuantité requise : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
4 |
RONDELLE ELASTIQUE COURBE (8.4X15X0.8) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -709047 Plus d'informationsQuantité requise : 5 |
||||||
|
5 |
1C006466 - PNEU AV Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
1C003736 - PNEU 110/70-12" Plus d'informationsQuantité requise : 1 |
