Eclatés de véhicule - APRILIA TUONO 1100 Tuono V4 Factory 1100 E4 Superpole ABS 2019 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

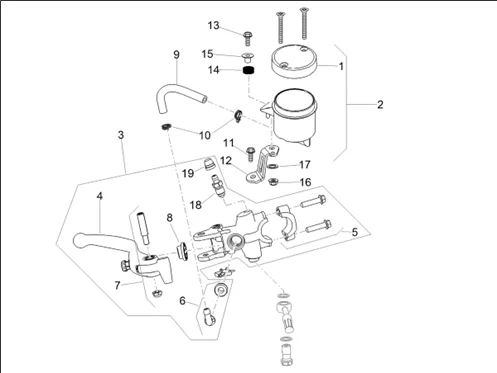

Cadre : 28.20 MAÎT. CYL. FREIN AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1224/Tuono_V4_Factory_1100_E4_Superpole_ABS_2019_(EMEA)_28.20.png)
1 |
AP8113598 - BOUCHON RES.HUILE FREINS Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/9/7/9/img/174979.JPG)
2 |
BOCAL/RESERVOIR LIQUIDE DE FREIN AVANT ORIGINE APRILIA 660-1000-1100 RS, RSV4, TUONO 2017>/V100 MOTO GUZZI 2022> -2B007235- Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
MAITRE CYLINDRE DE FREIN AVANT ORIGINE PIAGGIO APRILIA TUONO 1100 2017> -2B004894- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/0/7/1/img/176071.JPG)
4 |
LEVIER DE FREIN DROIT ORIGINE PIAGGIO APRILA RSV2, RSV4 2009>2016, RSV4 2021>, 660 RS 2020>2022 -2B007071- Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
2B001929 - RICAMBIO CAVALLOTTO CPL DI VITI Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/9/7/img/72197.JPG)
6 |
RACCORD DE POMPE FREIN ARRIERE ORIGINE APRILIA /MOTO-GUZZI COMMUN A LA GAMME -AP8213057- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/6/1/img/71661.jpg)
7 |
GOUJON MAITRE CYLINDRE DE FREIN ORIGINE PIAGGIO APRILIA 1000 RSV-2, RSV-4, 1100 TUONO -AP8133666- Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
B044585 - COIFFE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/6/2/1/img/145621.jpg)
9 |
2B003526 - TUYAU HUILE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
10 |
COLLIER DURITE (10,1) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8101595- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/4/img/71864.JPG)
11 |
VIS BTR TETE BOMBEE (6X12) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150340- Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
2B002993 - SUPPORT RESERVOIR Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/7/img/71917.jpg)
13 |
VIS BTR TETE BOMBEE (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152137- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.JPG)
14 |
CAOUTCHOUC/ENTRETOISE ORIGINE PIAGGIO COMMUN A LA GAMME -AP8120030- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
15 |
DOUILLE EN T (DIAMETRE INTERIEUR 6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8221023- Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
AP8150474 - ECROU BORGNE INOX Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/4/img/109834.jpg)
17 |
RONDELLE ELASTIQUE COURBE (6X12) ORIGINE PIAGGIO COMMUN A LA GAMME -658830- Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
AP8133502 - PURGE AIR Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
AP8113230 - CAPUCHON RENIFLARD Plus d'informationsQuantité requise : 1 |
