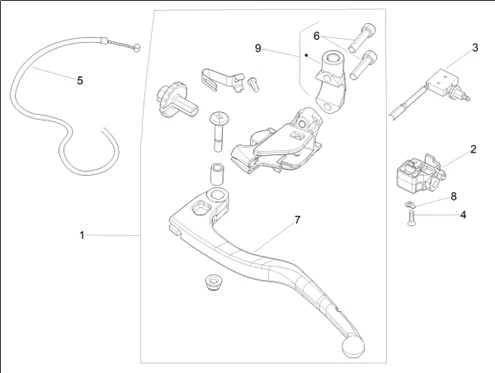

Guidon - commandes : 07.03 COMMANDE EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1275/Tuono_V4_1100_E5_2025_Emea_07.03.png)
1 |
2B011962 - COMMANDE EMBRAYAGE CPL Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/9/9/4/img/174994.jpg)
2 |
SUPPORT INTERRUPTEUR EMBRAYAGE ORIGINE APRILIA 1000-1100 RSV4 2017>, 660 RS 2020> -2B008238 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/8/3/7/img/145837.jpg)
3 |
INTERRUPTEUR STOP/EMBRAYAGE ORIGINE PIAGGIO RS, TUONO, TUAREG 660/ RSV4 APRILIA / V85 MOTO GUZZI -2D000325 Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
291051 - VIS M3X12 Plus d'informationsQuantité requise : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/1/6/2/img/43162_20251023155847.jpg)
5 |
CABLE/COMMANDE/TRANSMISSION EMBRAYAGE ORIGINE APRILIA 1000-1100 TUONO V4 2011> -899336 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/3/0/img/50830.JPG)
6 |
VIS BTR (6X25) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150053 Plus d'informationsQuantité requise : 2 |
||||||
|
7 |
2B011969 - LEVIER EMBRAYAGE Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
2B004481 - RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
2B011970 - CAVALIER LEVIER EMBR Plus d'informationsQuantité requise : 1 |
