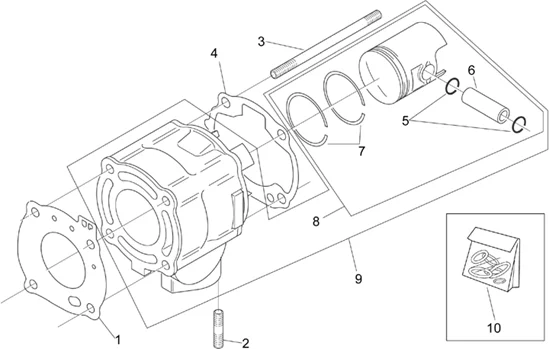

Moteur : 29.38 CYLINDRE AV.PISTON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/578/SR_50_H20_New_Ditech_04-07_29.38.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/6/6/8/img/44668.jpg)
1 |
JOINT DE CULASSE ORIGINE PIAGGIO APRILIA 50 SR H2O -AP2BVA000040- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/9/3/5/img/44935.jpg)
2 |
GOUJON (6X29) ORIGINE PIAGGIO COMMUN A LA GAMME -AP4BAN000002 Plus d'informationsQuantité requise : 1 |
||||||
3 |
AP4BAN000076 - VIS SANS TETE Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/7/8/2/img/44782.jpg)
4 |
JOINT EMBASE DE CYLINDRE ORIGINE PIAGGIO 50 SR H2O DI TECH APRILIA 2000>2007 -AP3EVA000433 Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
AP3EAN000096 - BAGUE DE BUTEE AXE Plus d'informationsQuantité requise : 2 |
||||||
|
6 |
AP3EDA000143 - AXE Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
SEGMENTS (D41) ORIGINE PIAGGIO APRILIA 50 SR H2O 2000>2007 -AP5RER000074- Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
AP5RER000077 - SEGMENTS - SERIE Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
AP5RER000081 - SEGMENTS - SERIE Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
AP5RER000084 - PISTON CPL. Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
AP5RER000085 - PISTON CPL. Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
AP5RER000087 - PISTON CPL. Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/0/2/4/img/45024.jpg)
9 |
CYLINDRE PISTON ORIGINE PIAGGIO APRILIA 50 SR H2O 2002>2007 -AP5RER000089 Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
AP5RZR000098 - JOINTS-JEU * Plus d'informationsQuantité requise : 1 |
